1x9 2.488Gbps Bi-Di Transceiver Module
Description
1x9 2.488Gbps Bi-Di Transceiver Module
Product Description
F-tone’s FTTR-BXX24-XXX series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules support data rates up to 2488 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The FTTR-BXX24-XXX series is high performance module for single fiber communications. The transmitter section uses a DFB laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825.
Product Features
● Single Fiber Bi-Directional Transceiver
● DFB /CWDM Laser Diode Transmitter
● Up to 0~120Km with 9/125μm SMF
● Data rates Up to 2488Mbps
● Industry Standard 1 x 9 Footprint
● Simplex SC/FC/ST Connector
● PECL signal input and output, TTL logic level signal detect output
● Single 3.3V power supply
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Wave solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level
● ESD Level: 4
● Compatible with ROSH6
● MSL Level: 1
Application
● ATM
● SONET/SDH Equipment Interconnect
● Fiber channel

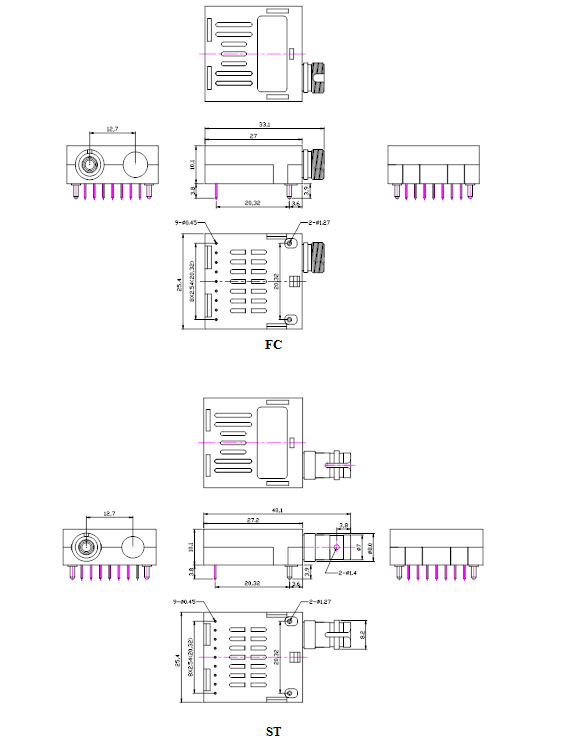

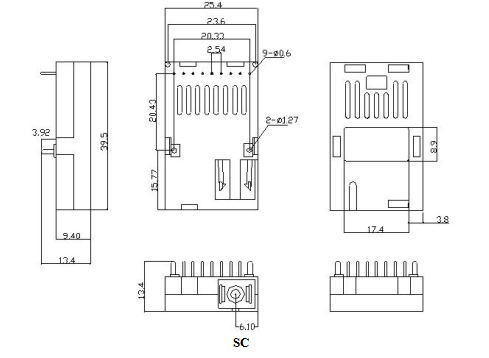

Module Outline Drawing
Ordering information
|
Part Number |
Product Description |
|
FTTR-B1324-20 |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;0 to +70°C |
|
FTTR-B1524-20 |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;0 to +70°C |
|
FTTR-B1324-20F |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;0 to +70°C |
|
FTTR-B1524-20F |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;0 to +70°C |
|
FTTR-B1324-20T |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;0 to +70°C |
|
FTTR-B1524-20T |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;0 to +70°C |
|
|
|
|
FTTR-B1324-40 |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C |
|
FTTR-B1524-40 |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C |
|
FTTR-B1324-40F |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C |
|
FTTR-B1524-40F |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C |
|
FTTR-B1324-40T |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C |
|
FTTR-B1524-40T |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C |
|
|
|
|
FTTR-B4524-40 |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C |
|
FTTR-B5424-40 |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;0 to +70°C |
|
FTTR-B4524-40F |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C |
|
FTTR-B5424-40F |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;0 to +70°C |
|
FTTR-B4524-40T |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C |
|
FTTR-B5424-40T |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;0 to +70°C |
|
|
|
|
FTTR-B4524-60 |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;0 to +70°C |
|
FTTR-B5424-60 |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;0 to +70°C |
|
FTTR-B4524-60F |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;0 to +70°C |
|
FTTR-B5424-60F |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;0 to +70°C |
|
FTTR-B4524-60T |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;0 to +70°C |
|
FTTR-B5424-60T |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;0 to +70°C |
|
|
|
|
FTTR-B1324-20I |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;-40 to +85°C |
|
FTTR-B1524-20I |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-SC;-40 to +85°C |
|
FTTR-B1324-20FI |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;-40 to +85°C |
|
FTTR-B1524-20FI |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-FC;-40 to +85°C |
|
FTTR-B1324-20TI |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;-40 to +85°C |
|
FTTR-B1524-20TI |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-20KM-ST;-40 to +85°C |
|
|
|
|
FTTR-B1324-40I |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C |
|
FTTR-B1524-40I |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C |
|
FTTR-B1324-40FI |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C |
|
FTTR-B1524-40FI |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C |
|
FTTR-B1324-40TI |
1x9-BIDI-T1310/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C |
|
FTTR-B1524-40TI |
1x9-BIDI-R1310/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C |
|
|
|
|
FTTR-B4524-40I |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C |
|
FTTR-B5424-40I |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-SC;-40 to +85°C |
|
FTTR-B4524-40FI |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C |
|
FTTR-B5424-40FI |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-FC;-40 to +85°C |
|
FTTR-B4524-40TI |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C |
|
FTTR-B5424-40TI |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-40KM-ST;-40 to +85°C |
|
|
|
|
FTTR-B4524-60I |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;-40 to +85°C |
|
FTTR-B5424-60I |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-SC;-40 to +85°C |
|
FTTR-B4524-60FI |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;-40 to +85°C |
|
FTTR-B5424-60FI |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-FC;-40 to +85°C |
|
FTTR-B4524-60TI |
1x9-BIDI-T1490/R1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;-40 to +85°C |
|
FTTR-B5424-60TI |
1x9-BIDI-R1490/T1550-2.5G-3.3V-Data Level:LVPECL-SD:LVTTL-60KM-ST;-40 to +85°C |
|
|
|
|
80KM/120KM Customized Transceivers,Please contact our sales |
|
注：本產品有全國產化型號可選
本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
