1.25Gbps CWDM 1 x 9 SM Transceiver Module

Product Description
F-tone’s FTTR-Cxx12-xxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 1.25Gbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate and SONET/OC-24 for communications.
Business level transceiver module which operating at 0℃ to 70℃.
FTTR-Cxx12-xxx series of transceiver modules can choose 8 kinds of Wavelength.

Product Features
● Multi-sourced 1 x 9 pin packaged
● 1270~1430 DFB or 1450nm~1610nm DFB Laser Transmitter
● SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Up to 80Km with 9/125μm SMF
● Single 3.3V, 5V, 3.3V/5.0V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Temperature range:
     -40℃ to +85℃
     0℃ to +70℃

Application
● Digital video transmission

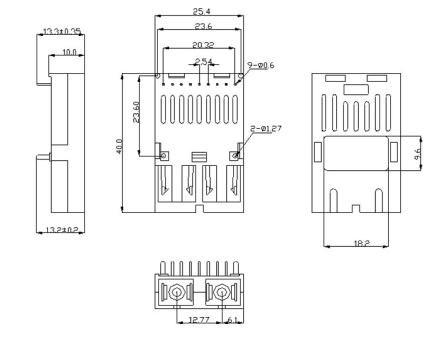

Module Outline Drawing

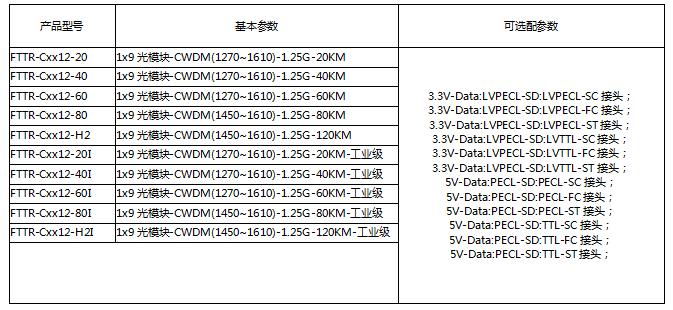

Ordering information

注：本產品有全國產化型號可選

本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
