1×9 1.25Gbps BIDI CWDM Transceiver Module
Description
1×9 1.25Gbps BIDI CWDM Transceiver Module
Product Description
F-tone’s FTTR-BCxx12-xxxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with the Multi-sourced 1x9 protocol.
These single fiber Bi-Directional transceiver modules provides the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate for communications.
Product Features
● CWDM Laser Diode Transmitter
● Up to 100 Km on 9/125μm SMF
● 3.3V, 5V, 3.3V/5.0V power supply
● SC/ST/FC single optical interface
● (LV)PECL Differential Inputs and Outputs and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Gigabit Ethernet
● Fiber channel
● Digital video transmission system
● Other Optic Link

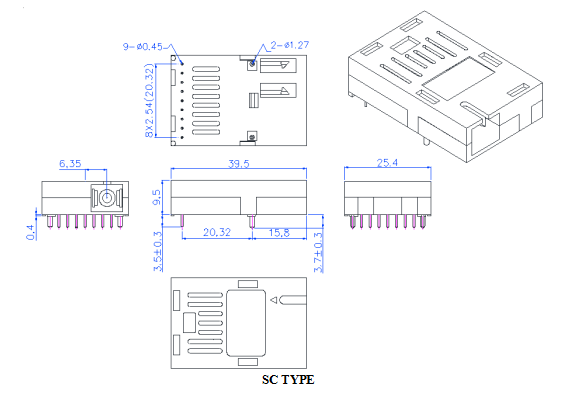

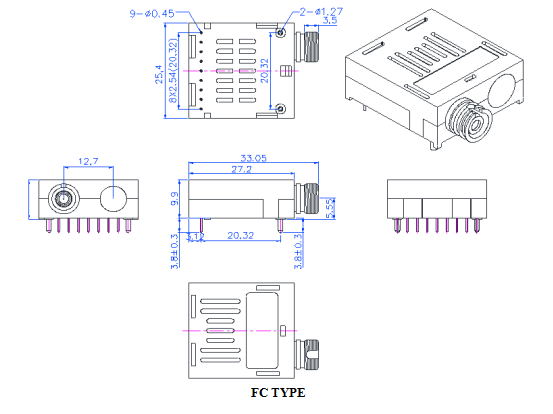

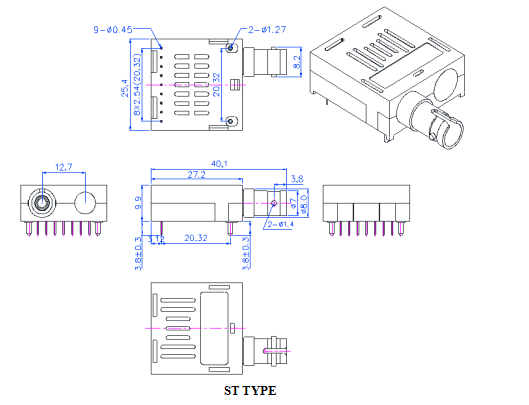

Module Outline Drawing

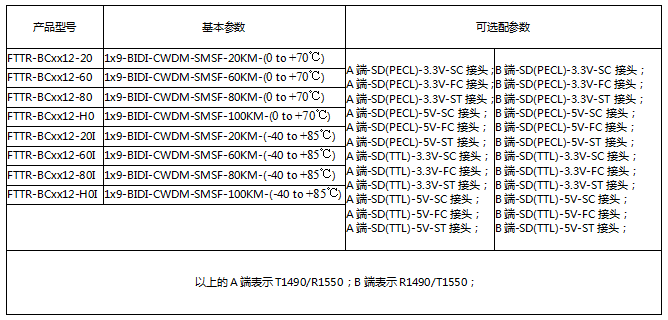

Ordering information
注：本產品有全國產化型號可選
本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
