155Mbps Bi-Di Transceiver Module

Product Description
F-tone Networks’s FTTR-Bxx03-xxx series of transceiver modules are the perfect solution for High-speed communication networks. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3/5.0 Voltage and provide the system designer with products to implement a range of FDDI and ATM designs at the 155Mbps rate and SONET/OC-3、SDH/STM-1 for Telecommunication.
The FTTR-Bxx03-xxx series is high performance module for single fiber communications by using 1310/1550 nm transmitter and 1550/1310 nm receiver. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1550 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry.

Product Features
● Single Fiber Bi-Directional Transceiver
● 1310nm FP or 1550nm FP (or DFB) Laser Transmitter
● Up to 80Km with 9/125μm SM
● Industry Standard 1 x 9 Footprint
● Single 3.3V, 5V, 3.3V/5.0V power supply
● SC/FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● PECL Differential Inputs and Outputs
● Wave Solderable and Aqueous Washable
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Optical Isolation > 30 dB
● Cross Talk < -40 dB
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level

Application
● WDM 155Mb/s Links
● SONET/SDH Equipment Interconnect
● Fast Ethernet 100 Mb/s Links

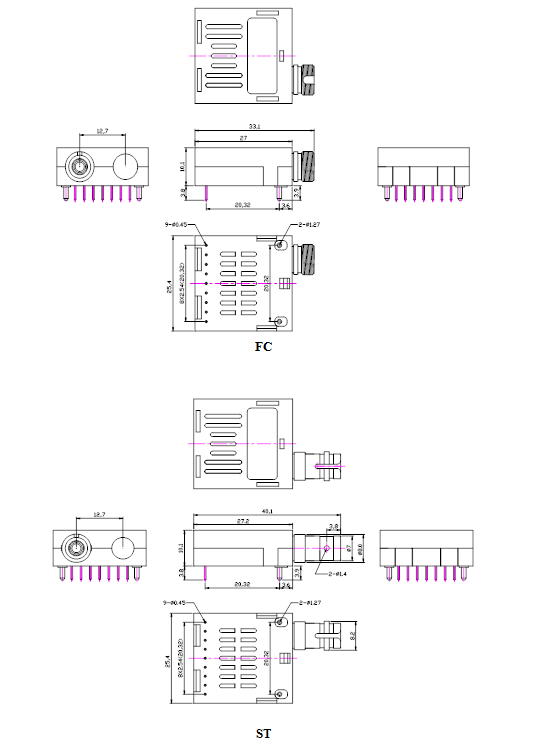

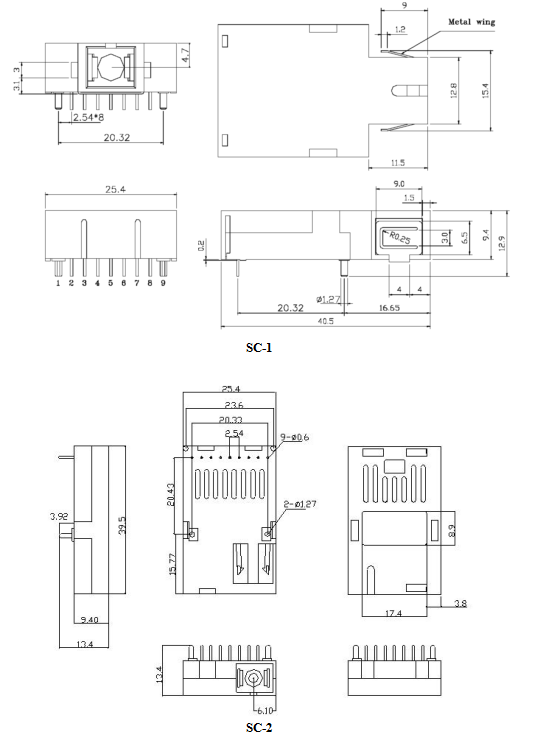

Module Outline Drawing

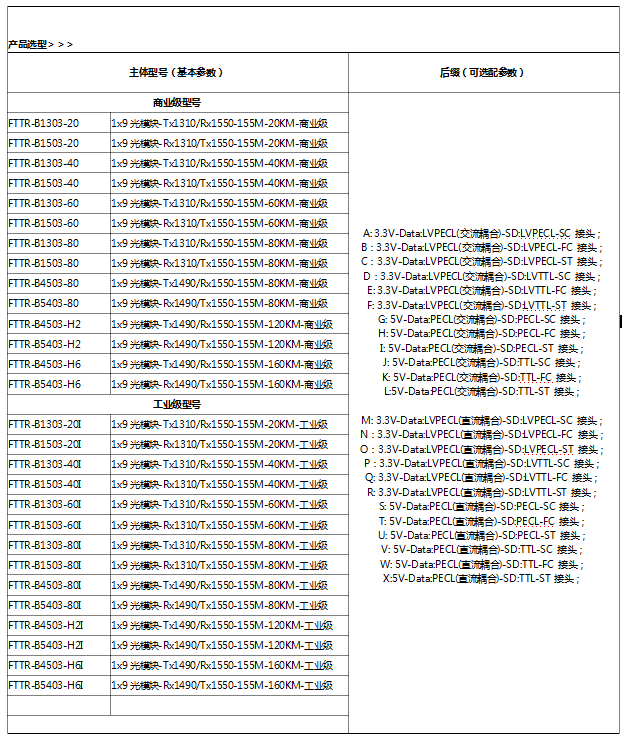

Ordering information

注：本產品有全國產化型號可選

本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
