2M~100bps 1 x 9 TTL Transceiver Module

Product Description
F-tone’s FTTR-xxL3-xx(2~100M series) of transceiver modules are the perfect solution for Low-speed communication networks.The transceiver modules support data rates up 2 to 100 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.The transceiver modules supplies the TTL interface of 5.0 Voltage and provide the system designer with products to implement a range of low-speed data and digital video transmission designs at the 2 to 84 Mbps rate for fiber communications.Commerce level transceiver module which operating at 0℃ to 70℃ and Industry level which operating extended temperature as -40℃ to +85℃ for available.

Product Features
● Multi-sourced 1 x 9 pin packaged
● 1310nm FP or 1550nm FP (or DFB) Laser Transmitter
● SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Up to 120Km with 9/125μm SMF
● Single 5V /3.3V power supply
● TTL signal input and output
● TTL logic level signal detect output
● Wave Solderable and washable with process plug inserted
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level

Application
● Digital Video
● PDH,SDH equipments

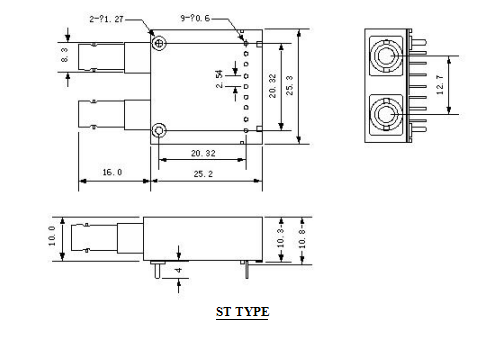

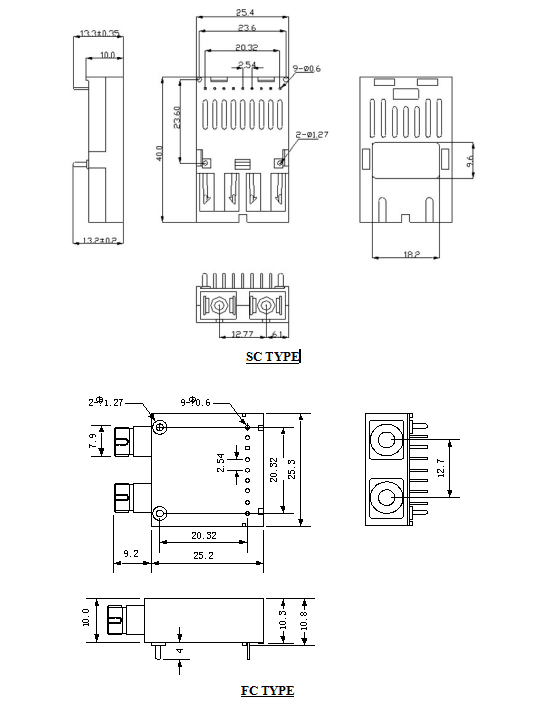

Module Outline Drawing

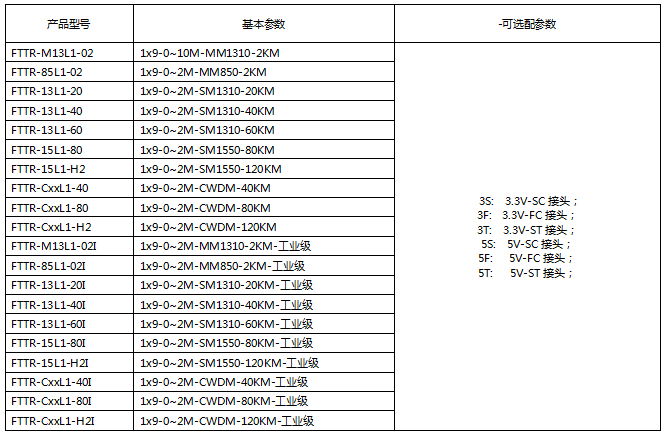

0-2M Ordering information

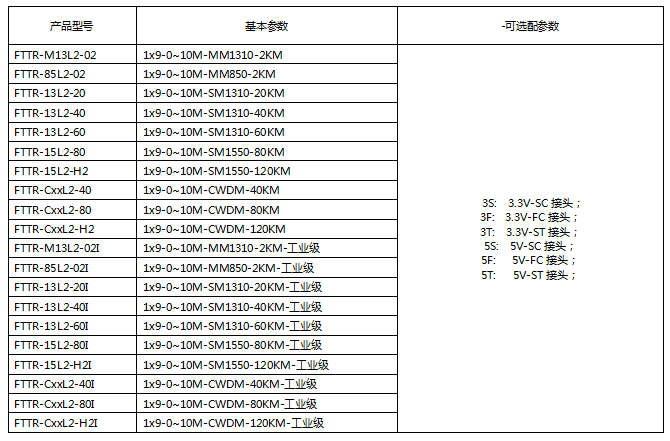

0-10M Ordering information

2-100M Ordering information

注：本產品有全國產化型號可選

本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
