1.25Gbps Bi-Di Transceiver Module

Product Description
F-tone’s FTTR-BXX12-XX series of transceiver modules are the perfect solution for High-speed communication networks.The transceiver modules support data rates up to 1250 Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The FTTR-BXX12-XX series is high performance module for single fiber communications by using 1310nm/1550nm transmitter and 1550nm/1310 nm receiver. The transmitter section uses a DFB laser diode and is a class 1 laser compliant according to International Safety Standard IEC-825. The receiver section uses an integrated 1310 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry.

Product Features
● Single Fiber Bi-Directional Transceiver
● 1310nm FP and 1550nm DFB Laser Diode Transmitter
● SC /FC /ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Operating case temperature:
     Standard : 0 to +70°C
     Industrial : -40 to +85°C
● Data rates Up to 1250 Mbps
● Industry Standard 1 x 9 Footprint
● Single 3.3V, 5V, 3.3V/5.0V power supply
● PECL Differential Inputs and Outputs
● Wave Solderable and Aqueous Washable
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Optical Isolation > 30 dB
● Cross Talk < -40 dB

Application
● Gigabit Ethernet
● Fiber channel
● Digital video transmission system
● Other Optic Link

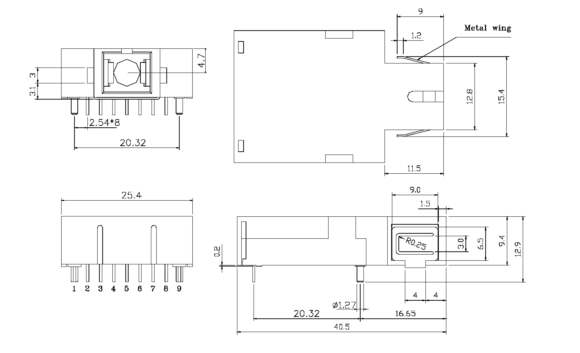

Module Outline Drawing

Ordering information

注：本產品有全國產化型號可選

本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
