2.488Gbps 1 x 9 SM Transceiver Module

Product Description
F-tone’s FTTR-1524XXX series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 2.488Gbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of Single 3.3V Voltage and provides the system designer with products to implement a range of Fiber Channel and SDH STM-16 and SONET OC-48 system.Business level transceiver module which operating at 0℃ to 70℃ and Industry level which operating extended temperature as -40℃ to +85℃ for available.

Product Features
● Multi-sourced 1 x 9 pin packaged
● 1310nm FP or 1550nm DFB Laser Transmitter
● SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Up to 40Km with 9/125μm SMF
● Single 3.3V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● SONET OC-48 applications
● Two temperature ranges:
— 0°C to +70°C
— -40°C to +85°C for industry level

Application
● ATM
● Fiber Channel
● SONET/SDH

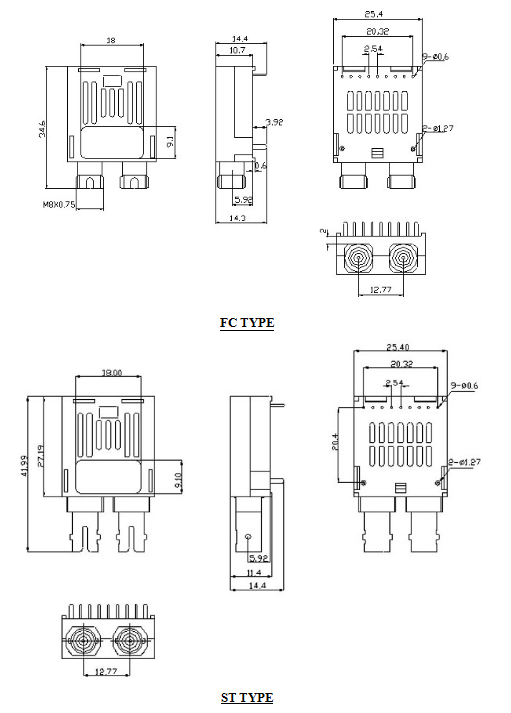

Module Outline Drawing

Ordering information

注：本產品有全國產化型號可選

本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。
