CWDM 模擬發射光模塊

描述
發射模塊將射頻信號轉換為光信號輸出，輸出波長符合ITU CWDM和DWDM標準。接收模塊將輸入的光信號轉換為射頻信號輸出。模塊金屬腔體密封，具備一定的抗電磁兼容能力。

特點
● 發射響應頻率：5~12000MHz（無制冷CWDM）5~18000MHz（制冷DWDM）
● DWDM發射波長：18~62(C波段ITU間隔)
● CWDM發射波長：1290~1370nm(間隔20nm)
● 輸出光功率：10dBm
● 發射RIN：≤-155dB/Hz
● 接收響應頻率：5~18000MHz
● 發射輸入P-1dB：≥+15dBm
● 光電/電光轉換插損：≤30dB
● 諧波抑制：≤30dBc
● 1MHz雜散抑制：≤65dBc
● 幅度一致性(定制)：≤±1.5dB
● 相位一致性(定制)：≤±3o
● 帶內平坦度(定制)：≤3dB
● 輸入/輸出駐波：≤2（50Ω）

應用
● 光通信
● 無線通信
● 5G

外形尺寸圖

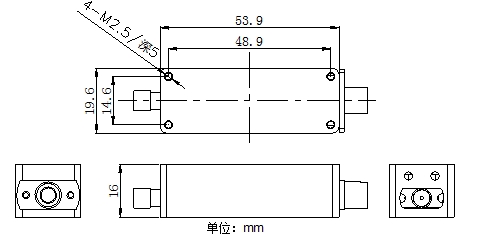

CWDM發射模塊、接收模塊

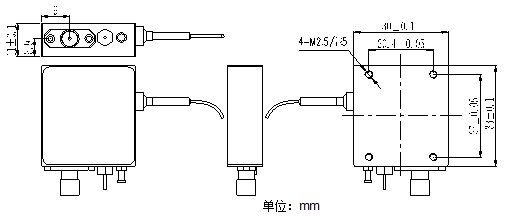

DWDM發射模塊
帶放大接收模塊

訂購信息

注：本產品有全國產化型號可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
