20GHz Mini Analog Optical Receiver with SM Fiber

Features
● Small size: 19.8*16.0*9.6mm
● High responsivity: ≥0.6 @ 1310nm
                                ≥0.7 @ 1550nm
● Wide operating frequency from 10MHz to 20GHz
● Wide wavelength range from 1260nm to 1620nm
● DC-block and matched to 50 Ohm

Applications
● Antenna remoting
● GPS signal transport
● Wireless signal transport
● Distributed antenna system
● High speed test and measurement
● Video Signal Distribution in HFC and FTTx Nodes

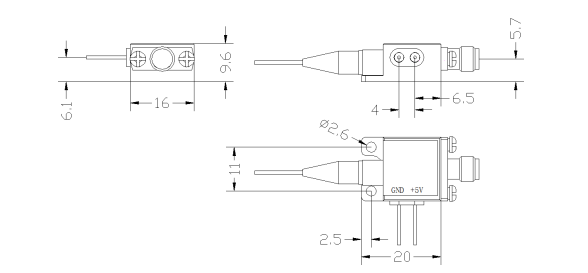

Mechanical (unit: mm)

Ordering Information

注：本產品有全國產化型號可選

本產品為FTRFR系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
