18GHz High Dynamic DWDM Analog Optical Transceiver

Features
◆Transmitter using butterfly optical device with TEC
◆Support ITU C-Band，wide range of DWDM wavelengths can be selected
◆Wide operating frequency from 10MHz to 18GHz
◆Flat frequency response： ≤±1.5dB typical
◆High RF input P-1dB：≥27dBm@10GHz
◆Good noise figure：≤48dB@18GHz
◆High dynamic range：SFDR up to 123dB·Hz2/3
◆Automatic optical power control（APC）and auto temperature control（ATC）functions
◆Excellent EMI/EMC design，ROHs compliant and CE certification

Applications
◆Antenna remoting
◆Satellite communication
◆Delay line
◆Distributed antenna system
◆Wideband wireless communication
◆OFDM fiber transmission

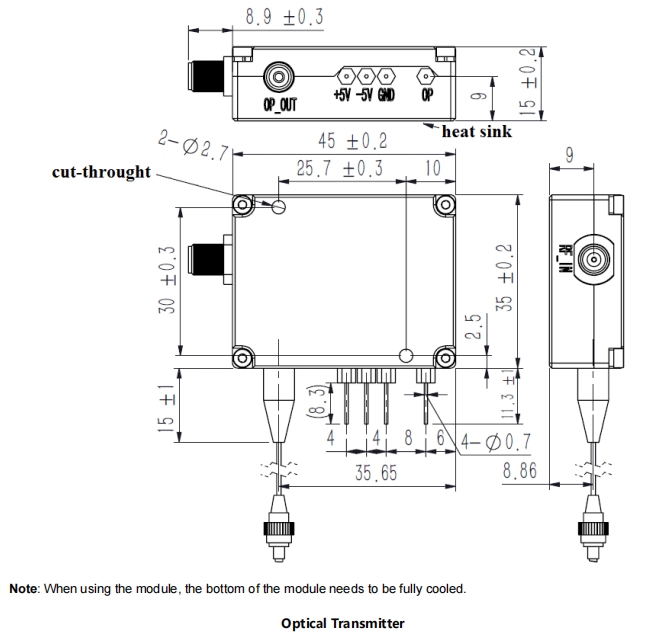

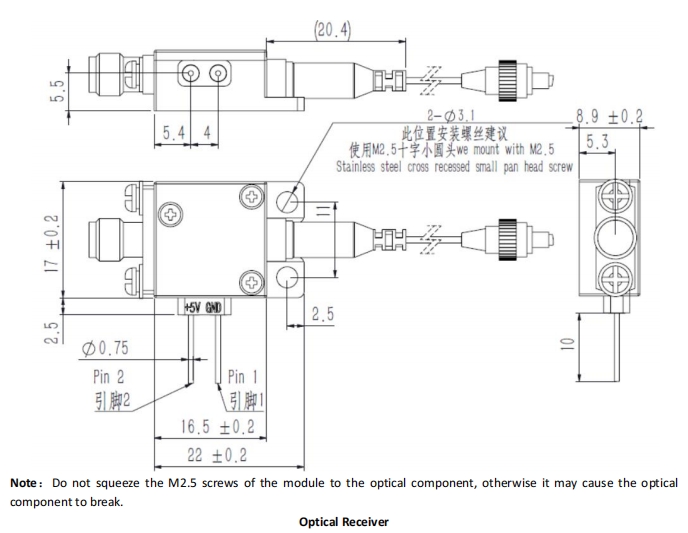

Mechanical (unit: mm)

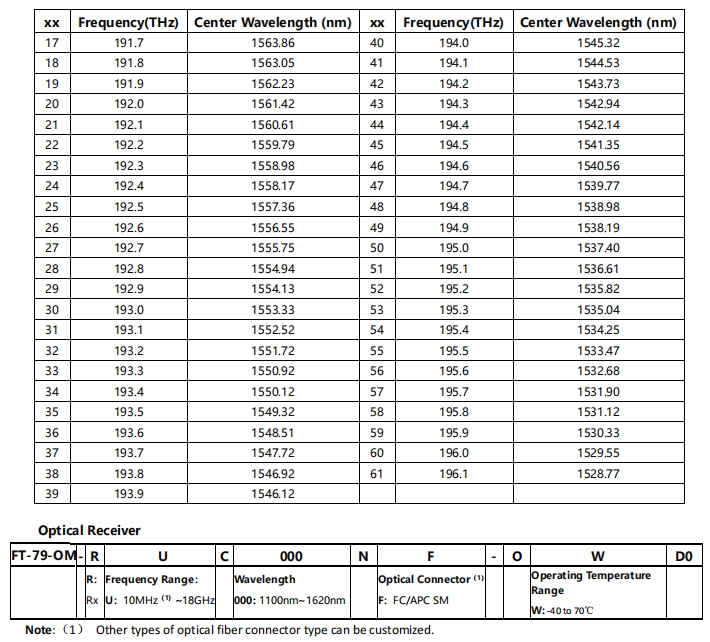

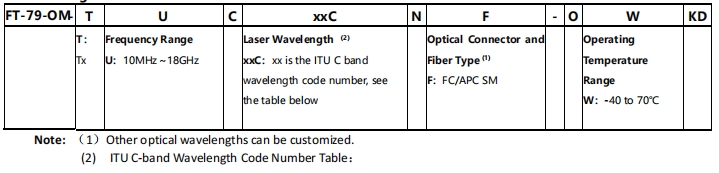

Ordering Information

注：本產(chǎn)品有全國(guó)產(chǎn)化型號(hào)可選
