400G QSFP-DD 2×FR4 DML 2km光收發模塊

產品描述
北億纖通的400G QSFP-DD 2×FR4光收發模塊用于數據中心的中等距離互連，符合IEEE 802.3cn 400GBASE-2xFR4以太網傳輸協議。該模塊可將8路50Gbps PAM4電信號轉換為8路50Gbps PAM4光信號（2xFR4），也可將8路50Gbps PAM4光信號（2xFR4）轉換為8路50Gbps PAM4電信號，最高支持2km鏈路傳輸。

產品特性
● 8×53.125Gbps PAM4 400GAUI-8電氣接口
● 8通道基于DML的發射器 (2xFR4)
● 功耗<9W
● 熱插拔QSFP-DD封裝
● 單模光纖傳輸距離可達2km
● Dual Duplex LC光口
● 內置數字診斷功能
● I2C管理接口
● 符合CMIS 4.0
● 工作溫度0℃至+70℃
● 3.3V供電電壓
● 符合RoHS標準（無鉛）

產品參數
產品類型：光模塊
應用場景：數據中心
傳輸速率：400G
傳輸協議：Ethernet
封裝類型：QSFP-DD
最大傳輸距離：2km-20km
傳輸介質：SMF
中心波長：CWDM
接口類型：Dual Duplex LC

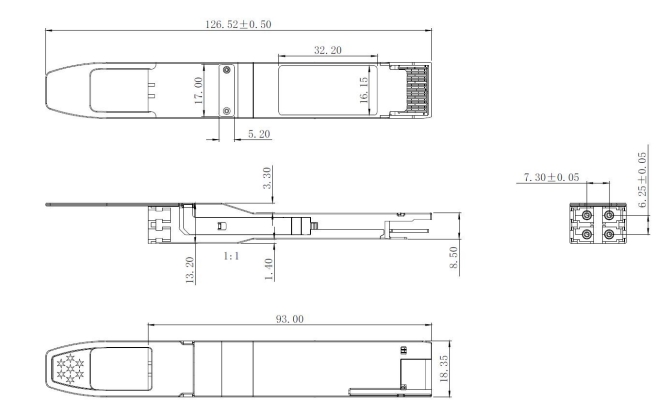

產品尺寸

訂購信息

本產品為FT-Y1系列，僅展示部分參數，如有需要，請聯系我們。

注：本產品有全國產化型號可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
