400G QSFP-DD XPSM8 20km Optical Transceiver Module

Description
The F-tone Networks FTQD-4H-XPSMDR4-20 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high performance modulefor multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 20km using G.652 SMF with KP-FEC. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface 400GAUI-8 uses a 76 contact edge type connector. The optical interface uses a MPO16/MTP16 APC connector . The Common Management Interface Specification (CMIS) for QSFP DD modules, This module incorporates F-tone Networks Technologies proven circuit and EML technology to provide reliable long life, high performance, and consistent service.

Features
● 8 channels full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 8x53Gbps PAM4 transmitter and PAM4 receiver
● 8 channels1310nm cooled EML
● 8 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <11W
● Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
● Maximum link length of 20km G.652 SMF with KP-FEC
● MPO16 APC connector receptacle
● Built-in digital diagnostic functions
● Operating case temperature 0°C to +70°C
● 3.3V power supply voltage
● RoHS compliant(lead free)

Applications
● IEEE 802.3bs 200GBASE-DR4
● 2x200Gigabit Ethernet Applications

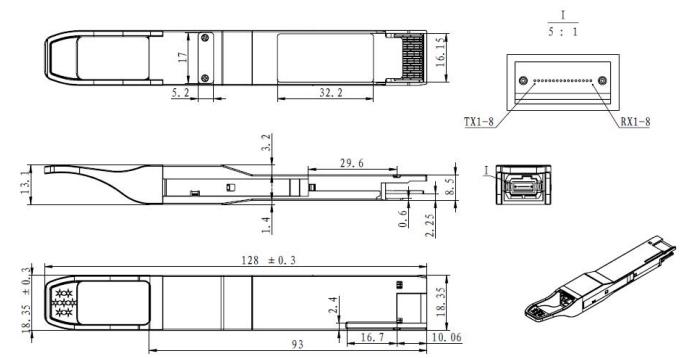

Mechanical Dimensions

Ordering information

本產品為FT-Y1系列，僅展示部分參數，如有需要，請聯系我們。

注：本產品有全國產化型號可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
