SFF 2*5 EPON 1000BASE-PX20 ONU Transceiver

Product Description
F-tone’s FTAF-ONE-20X series of transceiver modules are Optical Network Unit (ONU) for IEEE802.3ahTM-2004 1000BASE-PX10-U applications.FTAF-ONE-20X series modules are the high performance module for 1.25Gbps data link in single fiber by using 1310nm burst-mode transmitter and 1490nm continuous- mode receiver with optional 1550nm optical signal rejection.
The transmitter section uses a multiple quantum well 1310nm FP laser and is Class Ⅰ laser compliant product according to international safety standard IEC-60825.The receiver section uses an integrated 1490 nm PIN and preamplifier mounted in an optical header and limiting postamplifier IC.
The optical burst output can be enabled by a LVTTL logic high-level input of TX_BRST. Signal Detected (SD) output is provided to indicate the detection of an input optical signal of receiver.

Standard
● Compliant with Small Form Factor (SFF) MSA
● Compliant with IEEE Std 802.3ahTM-2004 1000BASEPX10-U
● Compliant with FCC 47 CFR Part 15, Class B Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I

Product Features
● Single fiber bi-directional data links with symmetric1.25Gbps upstream and 1.25Gbps downstream
● Integrated WDM filter for dual wavelength Tx/Rx operation at 1310/1490nm
● 1310nm burst-mode transmitter with FP laser for 1000BASE-PX10
● 1490nm continuous-mode receiver with PIN-TIA
● Tx/Rx distance up to 10 km
● 0 to 70℃operating ambient temperature
● 2×5 SFF package with SC receptacle
● Single 3.3V power supply
● LVPECL compatible data input/output interface
● LVTTL transmitter burst-mode control
● LVTTL receiver signal-detected indication
● Low EMI and excellent ESD protection
● Class I laser safety standard IEC-60825 compliant
● RoHS compliance

Application
● Gigabit Ethernet Passive Optical Networks (GE-PON) – ONU side
● Gigabit Ethernet Point-to-Point Bi-directional Transmission
● Media Converts for Fiber-In-The-Loop (FITL)
● Point to Multi Point Service (P2MP)

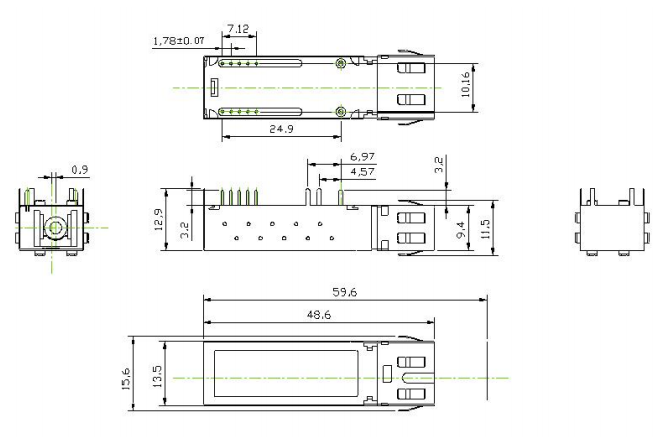

Mechanical Specifications

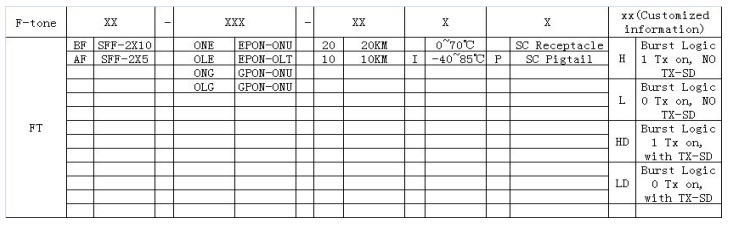

Ordering information

注：本產品有全國產化型號可選

本產品為FTAF系列，僅展示部分參數，如有需要，請聯系我們。
