155Mbps 2X5 SFF MMTransceiver Module

Product Description
FTAF-M1303-02Xseries of transceiver modules are the perfect solution for high-speed communication networks. FTAF-M1303-02X series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
FTAF-M1303-02X Small Form Factor (SFF) transceivers comply with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FTAF-M1303-02X SFF transceivers support data rates from 100Mbps to 200Mbps.FTAF-M1303-02X SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
● 1310nm wavelength Laser Transmitter
● Up to 5Km on 62.5/125µm MMF
● Single 3.3V power supply
● Standard 2X5 pin footprint (MSA Compliant)
● Operating Temperature Range
         0℃ to +70℃
         -40℃ to +85℃
● Duplex LC connector
● CML Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)

Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

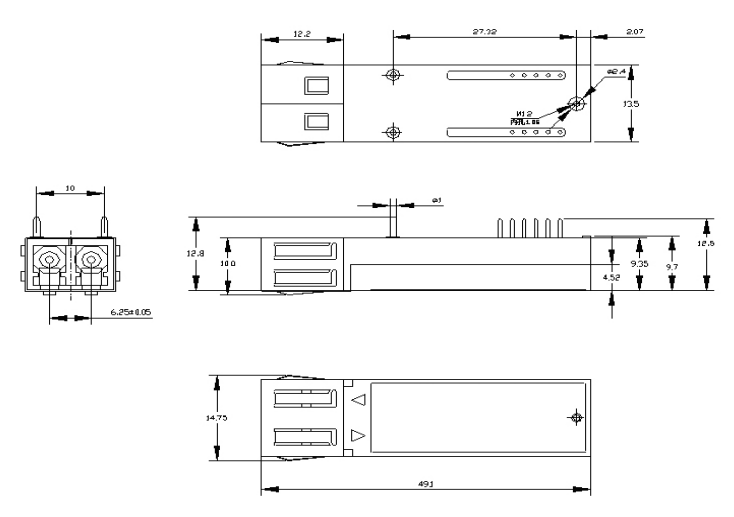

Mechanical Specifications

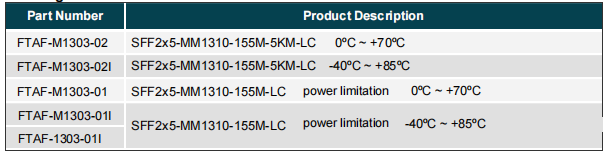

Ordering information

注：本產品有全國產化型號可選

本產品為FTAF系列，僅展示部分參數，如有需要，請聯系我們。
