OE Mixing Integration Analog Optical Transmitter

Features
● Ultra-small size: 30mm*8.4mm*7mm
● Building in TEC
● Support CWDM and ITU C-Band DWDM
● Wide operating frequency from 100MHz to 18GHz
● Integrated LNA optional
● Single +5V supply
● ATC function
● Flat frequency response
● High dynamic range
● Excellent EMI/EMC design
● CE certification and RoHS complaint

Applications
● Antenna remoting
● Laser source
● Fiber delay line
● Distributed antenna system
● Wideband wireless communication
● OFDM fiber transmission

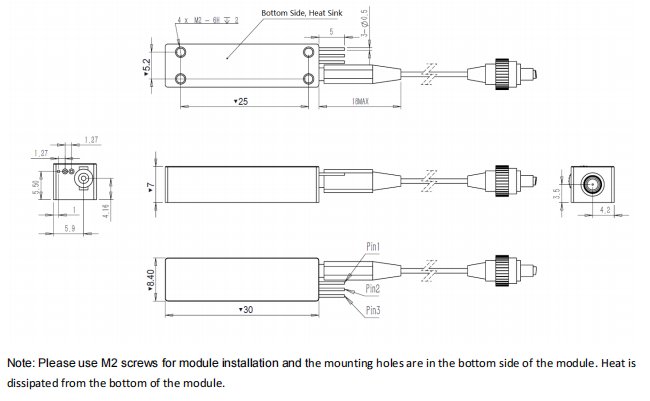

Mechanical (unit: mm)

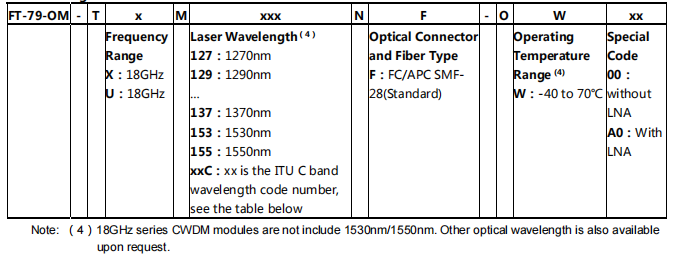

Ordering Information

注：本產品有全國產化型號可選

本產品為FT-79系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
