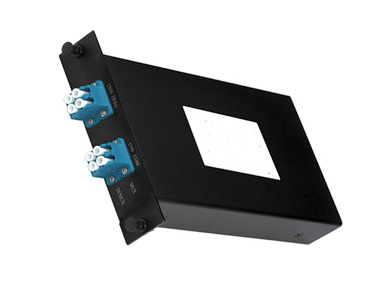

FWDM 復用&解復用 LGX模塊
Description
產品介紹:
北億纖通的FWDM LGX模塊是一種基于TFF(薄膜濾波器)的波分復用技術,具備多種封裝尺寸、波長可選,典型的FWDM LGX模塊是將1310nm、1490、1550nm等信號復用到一根光纖內傳輸,或?qū)⒁桓饫w內的多個信號進行解復用,也可以實現兩端同時復用和解復用的雙光纖傳輸;大大降低接入成本,能滿足數據、語音、CATV等綜合業務的高寬帶需求,廣泛應用與三網合一、FTTX等.
產品特性:
● 低插入損耗
較低的插入損耗,使FWDM LGX模塊運用時擁有較低的信號衰減,從而降低對信號發射器的功率要。
● 高隔離度
較高的隔離度值，使FWDM LGX模塊里面多信號傳輸時進行充分的
信號隔離，有效防止信號之間相互串?dāng)_導致傳輸信號失真。
● 成熟生產工藝
北億纖通的FWDM LGX模塊具有成熟的生產工藝,性能穩定可靠,支持-40℃~+85℃的惡劣環境下工作,保證信號的穩定傳輸。
● 搭配標準機箱尺寸
北億纖通的FWDM復用&解復用LGX模塊可以獨立使用,也可搭配1U機箱運用,其LGX按1/3的19"機箱尺寸設計,在一臺1U機箱上搭配3款該類或其他的LGX模塊類型,增加1U機箱利用率。
● 符合國際標準
北億纖通的FWDM復用&解復用LGX模塊符合RoHs,滿足TelcordiaGR-1209與GR-1221。
● 安裝方便、標識清晰
北億纖通的LGX模塊盒與機箱的固定方式采用鉚釘式固定扣,使用UL94V-2認可的尼龍料制成,方便安裝與拆解;每個LGX模塊面板工作端口均有激光打印的波長標識,方便用戶識別。
產品規格:
| 參數 | 單位 | FWDM復用&解復用LGX模塊 | |
| 工作波長 | nm | 1260~1670nm | |
| IP信號波長 | nm | 1260-1360(upstream) | 1480-1500(downstream) |
| CATV信號波長 | dB | 1540~1560 | |
| 插入插損 | dB | ≤1.5 | |
| 隔離度 | dB | ≥30 | |
| 回波損耗 | dB | ≥45 | |
| 方向性 | dB | ≥50 | |
| 紋波損耗 | dB | ≤0.5 | |
| 封裝尺寸 | mm | L180xW100xH29、L150xW100xH29 | |
| 工作溫度 | ℃ | -40~+85 | |
| ? 連接器類型 | LC/UPC(或客戶指定) | ||
