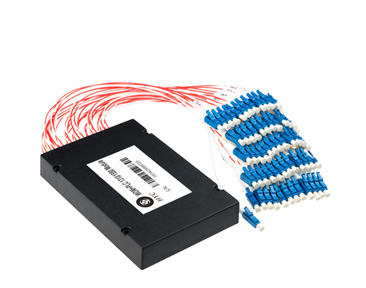

PLC+WDM模塊
Description
產品介紹:
北億纖通的PLC+WDM模塊是一種基于平面波導技術和TFF(薄膜濾波器)波分復用技術,具備多種封裝尺寸和多種通道數量可選;PLC+WDM模塊集成PLC、WDM兩種類型產品串接使用, 它支持1*N方式的多通道CATV信號傳輸,且滿足每個通道的獨立IP信號上下行傳輸;能滿足數據、語音、CATV等綜合業務的高寬帶需求,廣泛應用與三網合一、FT
產品特性:
● 低插入損耗
較低的插入損耗,使PLC+WDM模塊運用時擁有較低的信號衰減,從而降低對信號發射器的功率要求。
● 高隔離度
較高的隔離度值,使PLC+WDM模塊里面多信號傳輸時導致傳輸信號失真。進行充分的信號隔離,有效防止信號之間相互串?dāng)_導致傳輸信號失真。
● 成熟生產工藝
北億纖通的PLC+WDM模塊具有成熟的生產工藝,性能穩定可靠,支持-40℃~+85℃的惡劣環境下工作,保證信號的穩定傳輸。
● 多種通道數可選
北億纖通的PLC+WDM可提供1*8、1*16、1*32等多種通道選擇均搭配上&下行的IP信號獨立端口。
● 符合國際標準
北億纖通的PLC+WDM模塊符合RoHS與UL94-V1,滿足TelcordiaGR-1209與GR-1221。
● 安裝方便、標識清晰
北億纖通的PLC+WDM模塊盒有自帶的安裝孔位,方便安裝;模塊每個出纖端口均有通道標識,方便用戶識別。
產品規格:
| 參數 | 單位 | PLC+WDM模塊 | |
| 工作波長 | nm | 1260~1670nm | |
| IP信號波長 | nm | 1260-1360(upstream) | 1480-1500(downstream) |
| CATV信號波長 | nm | 1540~1560 | |
| 插入插損 | dB | ≤1.5(for IP) | ≤18.5(for CATV) |
| 隔離度 | dB | ≥30(@ IP) | ≥15(@ CATV) |
| 回波損耗 | dB | ≥45 | |
| 方向性 | dB | ≥50 | |
| 紋波損耗 | dB | ≤0.5 | |
| 封裝尺寸 | mm | L120xW80xH18 | |
| 工作溫度 | ℃ | -40~+85 | |
| ? 連接器類型 | LC/UPC(或客戶指定) | ||
