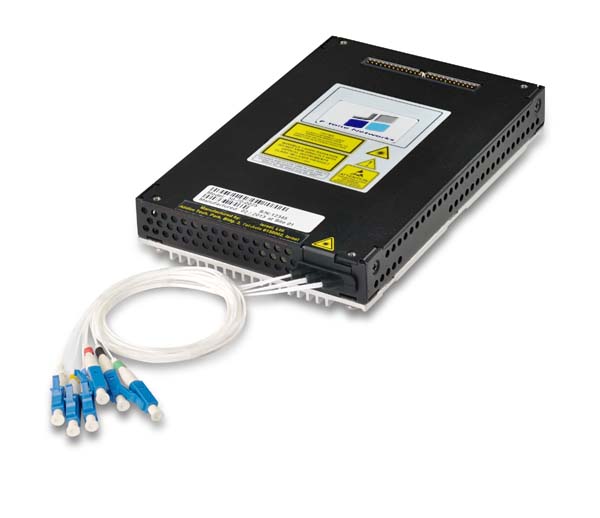

Fixed Gain EDFA
Description
Fixed Gain EDFA
F-tone's 70x90 mm Fixed Gain EDFA product line supports a full range of C- or L-band fixed gain WDM EDFAs, as well as narrow band, CWDM and single channel EDFAs. The products support either cooled or uncooled pumps, allowing the optimal combination of size, power consumption and performance to be achieved for each application.
Features
Small MSA form factor, low power consumption
Output power up to 22 dBm
Flat gain and low noise figure
Laser Safety - Class 1M
Applications
Metro and regional DWDM networks
Sonet/SDH and Datacom networks
Military and industrial applications
Test and measurement systems
Can be used also as fixed gain with VOA
Specifications
| Parameter | Specifications | Remarks | ||
| Min. | Max. | Units | ||
| Wavelength Range | 1528 | 1567 | nm | Amplifier can be operated gain flattened at narrow bandwidth of ±2 nm bandwidth |
| Input Power Range | -40 | +8 | dBm | 30 dB dynamic range for input detectors |
| Saturated Output Power | 22 | dBm | ||
| Noise Figure | 6 | dB | ||
| Operating Case Temperature | 0 | +70 | °C | |
| Storage Temperature Range | -40 | +85 | °C | |
| Power Consumption | 12 3 |
W | Cooled pumps Uncooled pumps |
|
| Power Supply | +4.75 or +3.05 |
+5.25 or +3.55 |
V | |
| Dimensions (WxHxD) |
70x90x15 |
mm | Other form factors available | |
| Laser Safety |
Class 1M |
For output power <20.5 dBm | ||
