CWDM 復用&解復用 LGX模塊
Description
產品介紹:
北億纖通的CWDM復用&解復用LGX模塊是一種基于TFF(薄膜濾波器)的波分復用技術,具備多種封裝尺寸、波長可選;它將不同波長的光信號復用至單根光纖進行傳輸,在接收端使用解復用將光纖中的信號分解為不同波長的信號,北億纖通配備單纖或雙纖兩種傳輸模式;因CWDM的寬波段、對系統設備的低要求等優勢,已在城域網接入層占據的重要的位置。
產品特性:
● 低插入損耗
較低的插入損耗,使CWDM LGX模塊運用時擁有較低的信號衰減,從而降低對信號發射器的功率要求。
● 高隔離度
較高的隔離度值，使CWDM LGX模塊里面多信號傳輸時進行充分的信號隔離,有效防止信號之間相互串?dāng)_導致傳輸信號失真.
● 成熟生產工藝
北億纖通的CWDM LGX模塊具有成熟的生產工藝,性能穩定可靠,支持-40℃~+85℃的惡劣環境下工作,保證信號的穩定傳輸。
● 搭配標準機箱尺寸

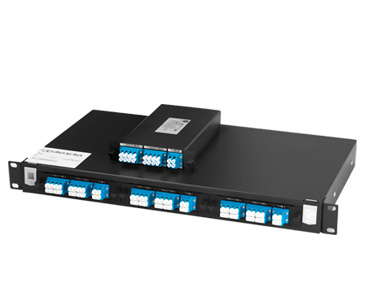

北億纖通的CWDM復用&解復用LGX模塊可以獨立使用,也可搭配1U機箱運用,其LGX按1/3的19"機箱尺寸設計,在一臺1U機箱上搭配3款該類或其他的LGX模塊類型,增加1U機箱利用率。
● 符合國際標準
北億纖通的CWDM復用&解復用LGX模塊符合RoHs,滿足TelcordiaGR-1209與GR-1221。
● 安裝方便、標識清晰
北億纖通的LGX模塊盒與機箱的固定方式采用鉚釘式固定扣,使用UL94V-2認可的尼龍料制成,方便安裝與拆解;每個LGX模塊面板工作端口均有激光打印的波長標識,方便用戶識別。
產品規格:
| 參數 | 單位 | CWDM復用&解復用LGX模塊 | |||||
| 通道數 | nm | 2 | 4 | 8 | 12 | 16 | 18 |
| 工作波長 | nm | 1260~1650 & 1460~1650 | |||||
| 透射帶寬 | nm | ±6.5、±7.0、±7.5 | |||||
| 插入損耗 | dB | ≤1.0 | ≤1.5 | ≤2.5 | ≤2.5(含跳片) | ≤3.0(含跳片) | ≤3.5(含跳片) |
| 相鄰?fù)ǖ栏綦x度 | dB | ≥30 | |||||
| 非相鄰?fù)ǖ栏綦x度 | dB | ≥45 | |||||
| 回波損耗 | dB | ≥45 | |||||
| 方向性 | dB | ≥50 | |||||
| 透射紋波 | dB | ≤0.5 | |||||
| 封裝尺寸 | mm | 常規：L180xW100xH29 MINI：L88xW90xH26、L88xW90xH52 | |||||
| 工作溫度 | ℃ | -40~+85 | |||||
| 連接頭類型 | LC/PC(或客戶定制) | ||||||
