53G SFP56 Active Optical Cable (FTCS-50G-CS-Oxxx)
Description
Description
The F-tone Networks Technologies FTCS-50G-CS-Oxxx is a single-Channel Active Optical Cable for 26.5625GBd PAM4 Ethernet Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
● full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 53Gbps PAM4 transmitter and PAM4 receiver
● 850nm VCSEL array
● PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <2W
● Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472
● Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3cd 50GBASE-SR

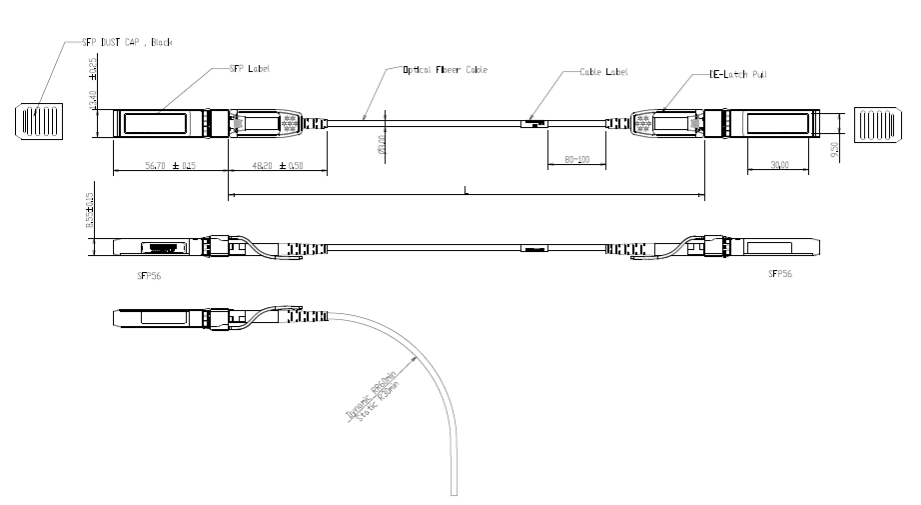

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
|
FTCS-50G-CS-Oxxx |
53.125Gbps, 850nm; SFP56 Active Optical Cable; 0oC ~ +70oC |
|
|
FTCS-50G-CS-OxxxI |
53.125Gbps, 850nm; SFP56 Active Optical Cable; -40oC ~ +85oC |
|
|
xxx :001~070,1~70 Length in meters on OM3 MMF |
||
|
xxx :001~100,1~100 Length in meters on OM4 MMF |
||
|
Further details are available from any F-tone Networks sales representative. |
||
本產品為25G~400G高速光模塊系列，如有需要，請聯系我們。
注：本產品有全國產化型號可選
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
