40Gb/s QSFP+ Parallel Single Mode to MPO AOC up to 2km(FTCQ-4X-PSMIR4-M1-xxx)
Description
Description
QSFP PSM MPO AOC are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and 40GbE PSM4. QSFP PSM MPO AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Features
● Full duplex 4 channel 1310nm parallel module
● Transmission data rate up to 11.3Gbit/s per channel
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 1310nm FP array
● 4 channels PIN photo detector array
● Maximum link length of 2km on G652 single mode fiber (SMF)
● Single Mode 8 fibers MPO(APC) connector receptacle
● Maximum power consumption 3.5W
● Housing isolated from connector ground
● 3.3V power supply voltage
● RoHS 6 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● Infiniband Connectivity SDR/DDR/QDR
● 10/40 Gigabit Ethernet
● 2/4/8 Gbps Fiber Channel
● Data Centers and Storage Arrays

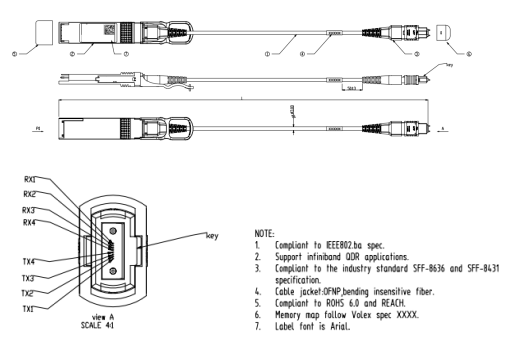

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCQ-4X-PSMIR4-M1-xxx |
40Gb/s QSFP+ PSM MPO AOC up to 2km, 0ºC ~ +70ºC |
|
FTCQ-4X-PSMIR4-M1-xxxI |
40Gb/s QSFP+ PSM MPO AOC up to 2km,-40ºC ~ +85ºC |
本產品為25G~400G高速光模塊系列，如有需要，請聯系我們。
注：本產品有全國產化型號可選
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
