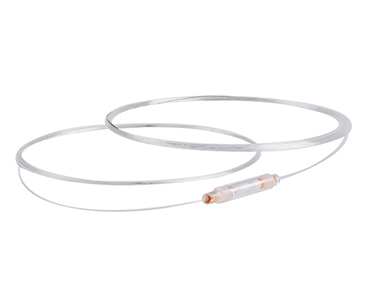

3端口 DWDM
Description
產品介紹:
3端口 DWDM器件主要用于無源波分復用模塊,是一種基于TFF(薄膜濾波器)的波分復用技術,具備多種封裝尺寸、波長可選,由公共端(COM)、透射端(Pass)、反射端(Reflect)三端口組成;DWDM具有100GHz、200GHz等信道間隔，相對于CWDM而言,極大地提高了工作波長數量,從而大大地增加了信號傳輸速度和通信容量,適用于長距離,大容量長途干線網,或超大容量的城域網核心節點,廣泛應用于電信5G、城域網、骨干網、數據中心等領域。
產品特性:
● 低插入損耗 ≦0.6dB
較低的插入損耗,使DWDM器件運用在波分復用系統里面時擁有較低的信號衰減,從而降低對信號發射器的功率要求。
● 高隔離度
較高的隔離度值,使DWDM器件運用在波分復用系統里面多信號傳輸時進行充分的信號隔離,有效防止信號之間 相互串?dāng)_導致傳輸信號失真。
● 成熟生產工藝
北億纖通3端口DWDM器件具有成熟的生產工藝,光路采用無膠及半自動條件封裝制作,性能穩定可靠,支持-40℃~+85℃
的惡劣環境下工作, 保證信號的穩定傳輸。
● 系統追溯、品質保證
北億纖通自主研發的生產信息管理系統,每只產品均有完整的電子流程,確保器件的品質可靠性和追溯性。
● 符合國際標準
北億纖通的3端口DWDM器件符合RoHS,滿足TelcordiaGR-1209-CORE與GR-1221-CORE,也滿足行業的168小時PCT可靠性實驗。
產品規格:
| 參數 | 單位 | 3端口DWDM |
| 工作波長 | nm | 1500~1600m |
| 信道間隔 | GHz | 100G/200G |
| 透射帶寬 | nm | ±0.12nm/±0.25nm |
| 透射插損 | dB | ≤0.8 |
| 反射插損 | dB | ≤0.4 |
| 透射相鄰隔離度 | dB | ≥28 |
| 透射非相鄰隔離度 | dB | ≥45 |
| 反射隔離度 | dB | ≥15 |
| 回波損耗 | dB | ≥50 |
| 方向性 | dB | ≥45 |
| 紋波損耗 | dB | ?≤0.3 |
| 封裝尺寸 | mm | Φ4.0xL30mm； MINI：Φ3.2xL30mm、Φ3.0xL30mm、Φ2.6xL25mm、Φ2.2xL25mm |
| 工作溫度 | ℃ | -40~+85 |
