參數/Parameters

條件/Conditions

規格/Specifications

單位/Unit

Min.

Max.

工作溫度/Operating Temperature

Device Not Powered on Heater Element

-5

65

℃

工作濕度/Operating Humidity

無冷凝環境/Non-Condensing Environment

5

85

%RH

存儲溫度/Storage Temperature

Device Not Powered on Heater Element

-40

85

oC

存儲濕度/Storage Humidity

無冷凝環境/Non-Condensing Environment

0

95

%RH

參數/Parameters

條件/Conditions

規格/Specifications

單位/Unit

Min.

Typ.

Max.

通道數/Number of Channels

40/48

CH

通道間隔/Number Channel Spacing

100

GHz

中心波長/Center Wavelength

ITU frequency, measured in vacuum.

C-band

nm

波長精度/Wavelength Stability

Maximum range of the wavelength error  of all channels and temperatures in average polarization.

±0.07

nm

-1dB帶寬/-1dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each Channel.

0.20

nm

-3dB帶寬/-3dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each channel.

0.36

nm

ITU波長通道插損/Optical Insertion Loss at ITU grid

Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors.

4.5

dB

相鄰?fù)ǖ栏綦x度Adjacent Channel Isolation

Ratio of peak transmission to the maximum transmission over both adjacent ITU wavelengths

25

dB

非相鄰?fù)ǖ栏綦x度

Non-Adjacent, Channel Isolation

Ratio of peak transmission in channel

passband to the maximum transmission over all non-adjacent ITU wavelength

29

dB

插損一致性/Insertion Loss Uniformity

The difference between the maximum and minimum of passband across all channels

1.0

dB

方向性/Directivity(Mux Only)

Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n

40

dB

回?fù)p/Optical Return loss

Input & output ports

40

dB

偏振相關損耗/Polarization Dependent Loss in Clear Channel Band

Worst-case value measured in ± 20GHz around ITU wavelength for each port.

0.5

0.7

dB

偏振模式色散Polarization Mode Dispersion

Maximum differential group delay within reference ITU wavelength

0.5

ps

色度色散/Chromatic Dispersion

Maximum change rate of group delay versus wavelength within reference ITU wavelength

-10

+10

ps/nm

最大輸入光功率Maximum Input Optical Power

Maximum continuous optical power

500

mW

尺寸/Dimensions

120 x 70 x 10

mm

光纖類型/Fiber Type

公共端/Common SMF-28e fiber with 900um loose tube/ SMF-28e 加900um松套管

通道端/Channels: SMF-28e Ribbons

光纖長度/Fiber Length

輸入端/Common

1000mm ± 50mm with 900um loose tube/輸入纖長1000mm ± 50mm 900um套管

輸出端/Channels

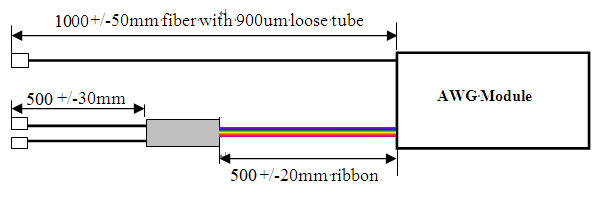

Ribbon 500mm± 20 mm and Fan out 500mm± 30mm with 900um loose tube

/輸出帶纖500mm± 20 mm，加分支器纖長500mm± 30mm

公共端/Common

顏色/Color

白/white

帶纖標識/Ribbon Identification

帶纖末端貼數碼貼標識

/Label with ribbon number will be placed close to end-points

連接器類型/Connector Options

輸入端/Common

LC/UPC

輸出端/Channels

LC/UPC

帶纖光纖標識/Fiber Identification in Ribbon

1

藍/Blue

2

橙/Orange

3

綠/Green

4

褐/Brown

5

灰/Grey

6

白/White

7

紅/Red

8

黑/Black

9

黃/Yellow

10

紫/Purple

11

粉/Pink

12

水/Aqua

 *可按客戶要求定制/Customized design available

FT-13-XAWG

X

XX

X

XXX

X

X

X

XX

XX

Type

Band

Number of Channels

Spacing

1st Channel

Chip Type

Package

Fiber Length(Total Length)

In/Out Connector

是否全國產

AAWG=Athermal AWG

C=C-Band
L=L-Band
D=C+L-Band
X=Customize

16=16-CH
32=32-CH
40=40-CH
48=48-CH
96=96-CH
XX=Special

1=100G
2=200G
5=50G
X=Special

C62=C62
H61=H61
C60=C60
H59=H59
XXX=special

G=Gaussian
F=Flat Top

M=Module
R=Rack
X=Special

1=0.5m
2=1m
3=1.5m
4=2m
X=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC
7=ST/UPC
X=Specify

GC=全國產
空=非全國產
