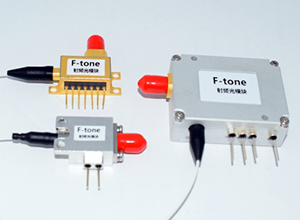

射頻光纖收發模塊
Description
簡單介紹：
射頻光纖收發模塊用于將射頻信號轉為光信號，通過光纖傳輸，接收端再將光信號轉換成射頻信號，其距離長、帶寬高、響應平坦，使用于通信及雷達系統。
詳情介紹：
The RF over fiber transmission module FT-AH-ROF400M designed for RF/wireless signal transmission over long distance, which overcome the problem of high loss when the RF/wireless signal transmit over coaxial cable or free space.
Profit
1. High bandwidth
2. Immune to RF jam
3. Different wavelength is available 1310nm/1490nm/1550nm or WDM
4. Compact size
Application
1. Radar antenna remote
2. For RF signal transmission over long distance
3. Wireless signal transmission.
4. Microwave signal distribution
5. EW
Specification:FT-AH-ROF400M
|
Parameters |
unit |
Typical value |
|
Frequency range |
GHz |
0.01 – 42 |
|
Wavelength |
1550nm+/-10nm |
ITU wavelength available |
|
Gain |
dB |
>-18@2GHz> |
|
Input IP3 |
dBm |
26@10GHz |
|
Input 3dB compression |
dBm |
+20 typical |
|
2nd Harmonic distortion |
dBc |
-70 typ. |
|
SFDR |
dBHz2/3 |
113 |
|
Max input RF power |
dBm |
+42dBm |
|
Noise Figure |
|
<-145dB/Hz |
|
IM3 Distortion |
dBc |
<-90 |
|
Input/output impedance |
Ohm |
50 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
