SFP28-DWDM IT 10Km (FTCS-Dxx25G-10Dxx)
Description
Description
This product is a 25G SFP28 transceiver designed for optical communication compliant with 25GE and CPRI Option 10 standard. Its high performance cooled DWDM EML transmitter and high sensitivity APD receiver provide superior performance for 25GE and CPRI application up to 10km (with FEC) Links.
The product is designed with SFP28 form factor, which is the optical/electrical connection according to the SFP+ Multi-Source Agreement (MSA)
Features
● Hot-pluggable SFP28 form factor
● Supports 24.33Gb/s aggregate bit rate
● Supports 25.78Gb/s aggregate bit rate
● Transmitter: cooled 25Gb/s DWDM EML TOSA
● Compliant to ITU-T 694.1
● Receiver: 25Gb/s APD ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 2.0W maximum power dissipation
● Maximum link length of 10Km over SMF
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS 2.0 compliant (2011/65/EU, lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10
● 25G Ethernet

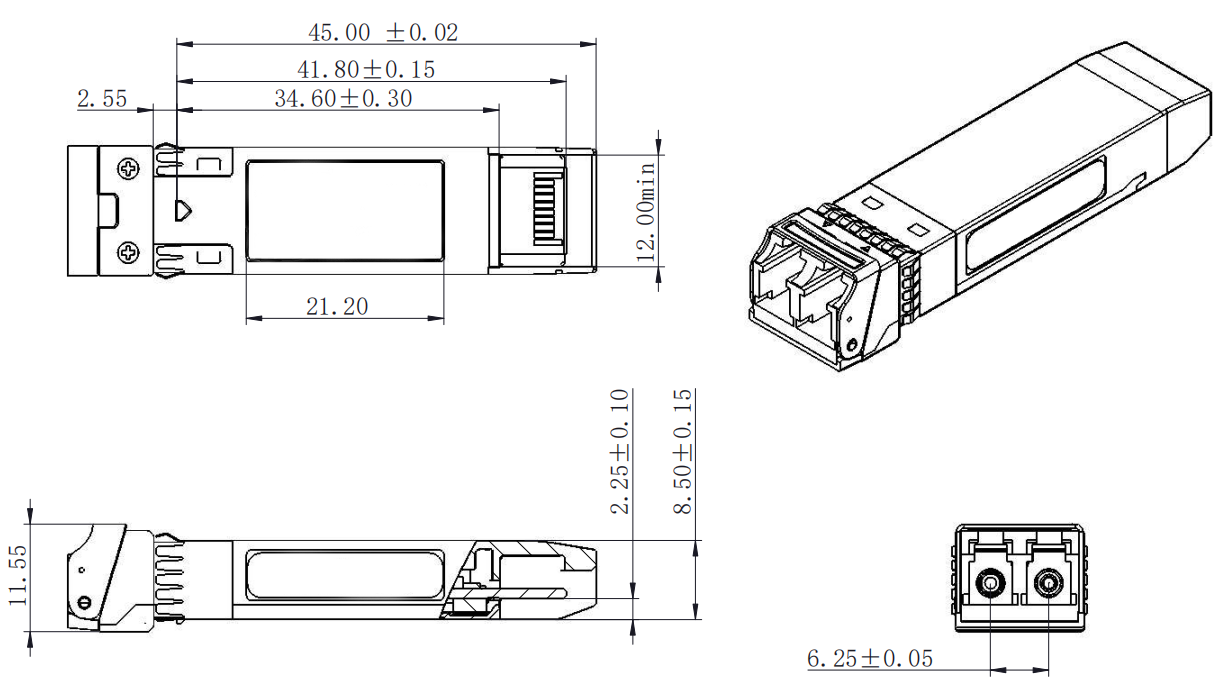

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-Dxx25G-10D |
CPRI Option 10, 25GE, SFP28 DWDM，10km, 0ºC ~ +70ºCxx – DWDM Channel No(18~61). |
|
FTCS-Dxx25G-10DI |
CPRI Option 10, 25GE, SFP28 DWDM，10km, -40ºC ~ +85ºCxx – DWDM Channel No(18~61). |
本產品為25G~400G高速光模塊系列，如有需要，請聯系我們。
注：本產品有全國產化型號可選
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
