鎧裝光纖跳線是一種新型的光纖跳線，可直接鋪設在機房及各種惡劣環境中，無需使用保護套管，可以降低施工成本，同時也大大提升了網路維護的方便性。鎧裝光纖跳線與傳統光纖跳線的最大區別在于它針對光纖易折斷、易被損壞的缺點，特別設計生產一種細小的可撓性不銹鋼套管來保護光纖，再在套管外加上阻燃PVC或者LSZH被覆，以達到防火防潮防鼠咬等功能。

產品分類 Classification:
鎧裝光纖跳線由鎧裝光纜和光纖接頭兩部分組成。所以區分鎧裝光纖跳線，從鎧裝光纜的類型和光纖接頭類型來進行命名和區分。
Armored patch cord is assemblied by armored cable and fiber connectors.So we classified by armored cable types and connector types.
常用鎧裝光纜類型 Armored cable types：
按照光纜的結構，分為單鎧和雙鎧兩種結構。
According to cable structure, there are single armored and double armored types.

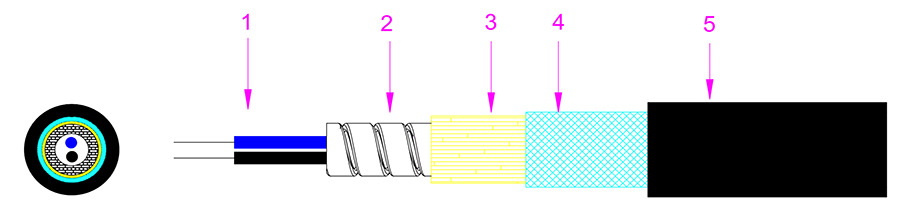

室內鎧裝光纜結構示意圖 Construction of indoor armored cable：

①緊包光纖 Tight buffer  ②不銹鋼軟管（起抗壓、抗彎曲、防鼠咬的作用）Stainless tube (crush/bend/rodent resistance)
③芳綸（起抗拉作用）Kevlar (tension)  ④不銹鋼編織絲（起抗扭的作用）Stainless braid (preventing twisting)

⑤外護套（PVC、LSZH、TPU、特氟龍、硅膠管等）Outer jacket(PVC,LSZH,TPU,Teflon,silicone tube.etc)

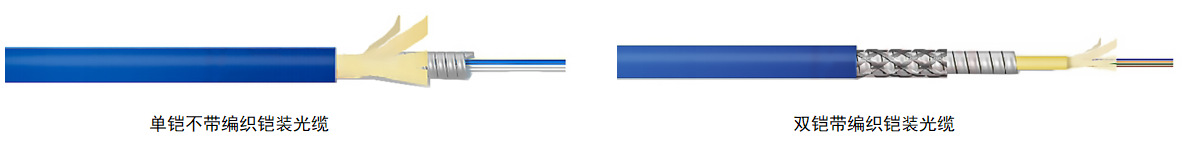

單鎧指不含不銹鋼編織網只有螺旋鎧管的光纜，雙鎧指包含了不銹鋼編織網和螺旋鎧管的光纜。
Single armor is only with stainless tube, no braid. Double armor with stainless tube, and braid both

按照光纖芯數，分為單管單芯，單管多芯，多管多芯（常用為雙管雙芯）。

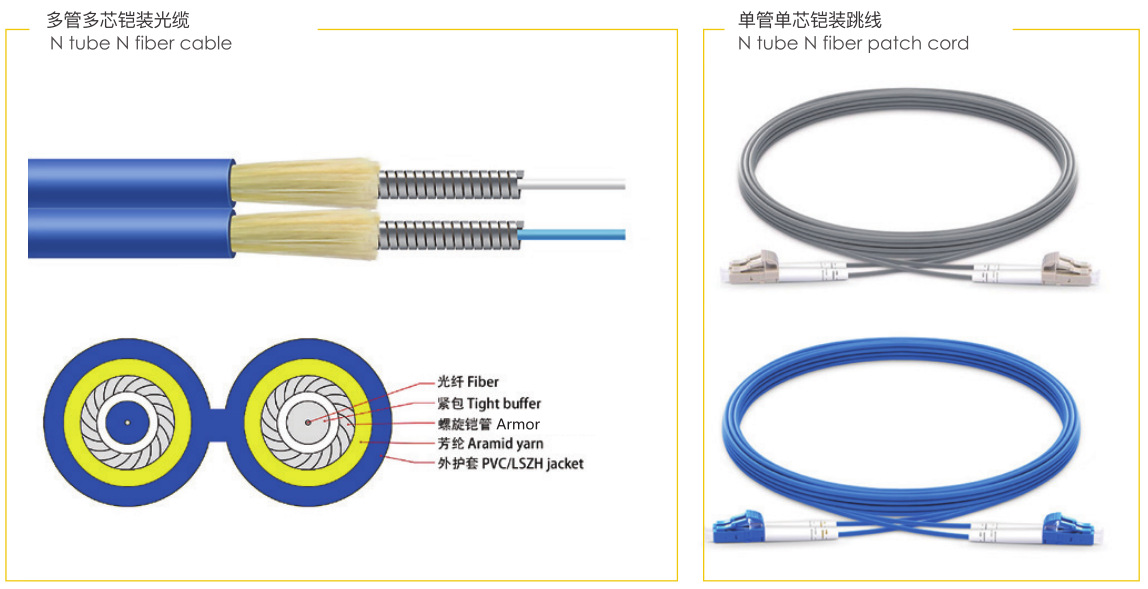

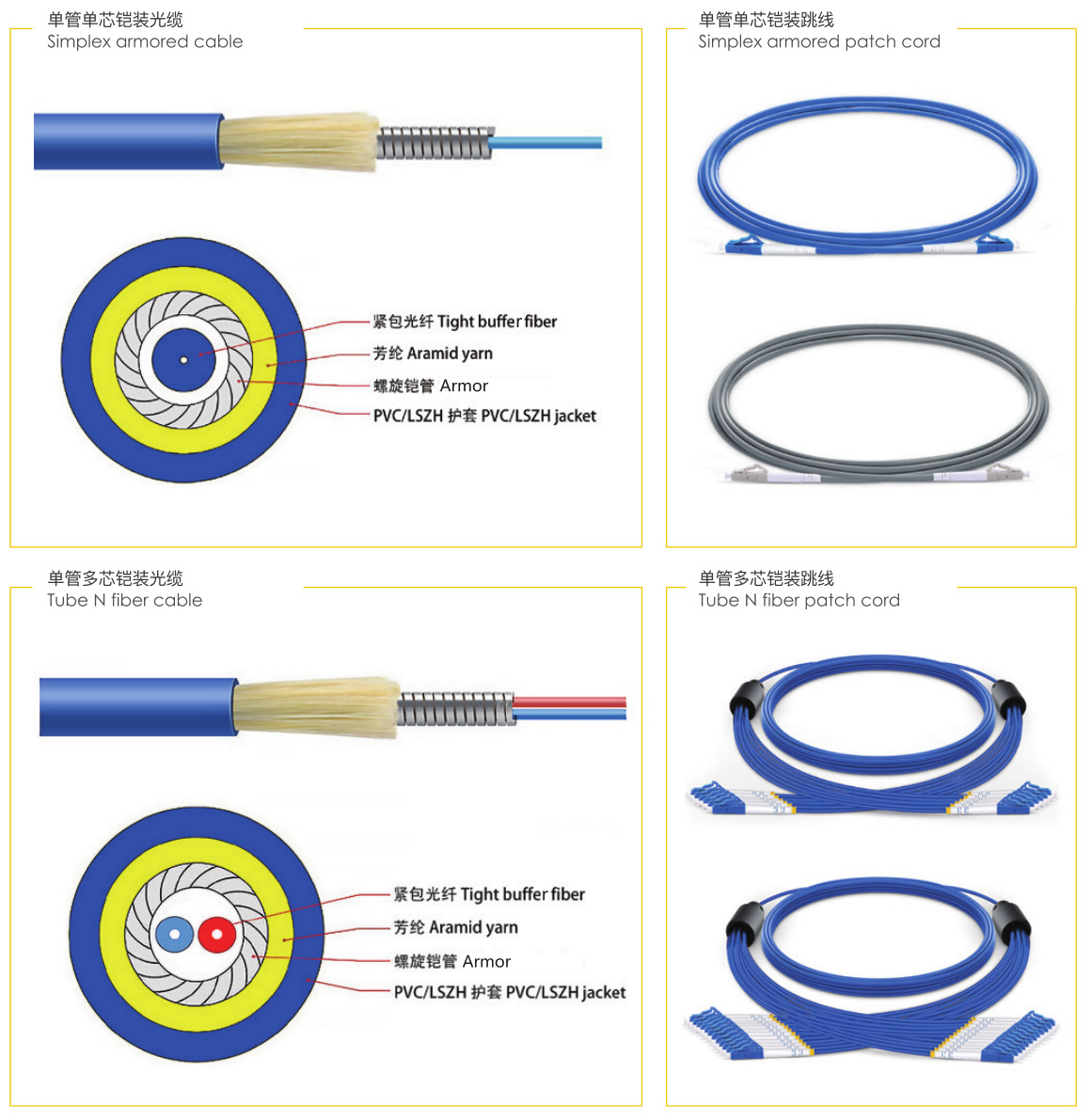

如下分別為幾種不同芯數類型鎧裝光纜結構示意圖；
According to the fiber cores.it’s classified by simplex.,1tube N fiber.,N tube N fiber.
Here for some construction for different cores；

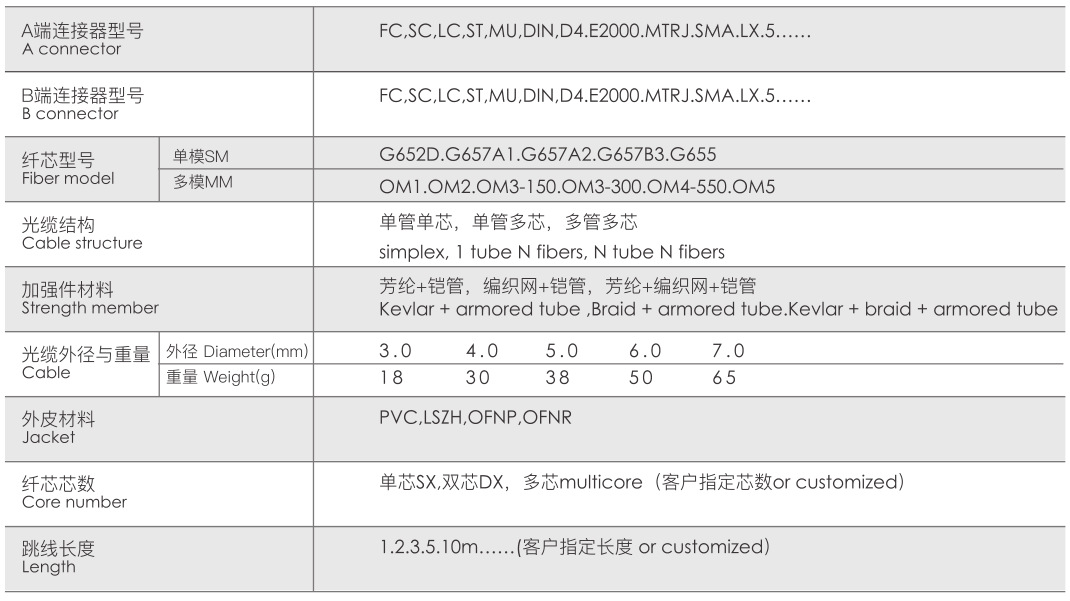

常規皮線光纖跳線訂貨信息表Order information
