詳情介紹：
RFODL微波光纖延遲線的特點：
微波光纖延遲線是雷達校驗系統、RF通信系統、微波信號處理系統等相關應用的上等解決方案。輸入的RF信號轉換為調制的光信號，然后輸入單模光線中，并生成一個固定的延時，然后在輸出端再次轉換回RF信號。

RFODL微波光纖延遲線Applications:
● Radar Calibration &Testing
● Signal & Phase Noise Processing
● Extension of radar range site
● RF Communications Links & Antenna remoting

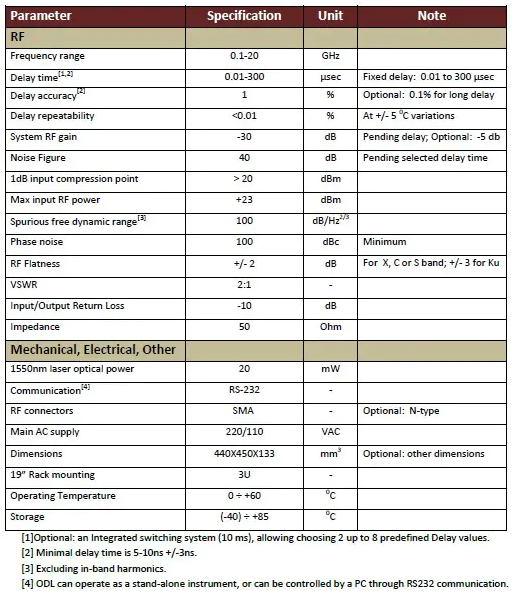

RFODL微波光纖延遲線Key features:
● Delays: 10 ns - 300 μsec (fixed)
● Frequency Range: 0.1-20 GHz
● Delay accuracy: 1% / 5 ns
● Remote control: RS-232
RFODL微波光纖延遲線Options:
● ODL with 2 - 8 different delays
● 1 3U module , or 2 modules enclosures
● Customized ODL modules

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
