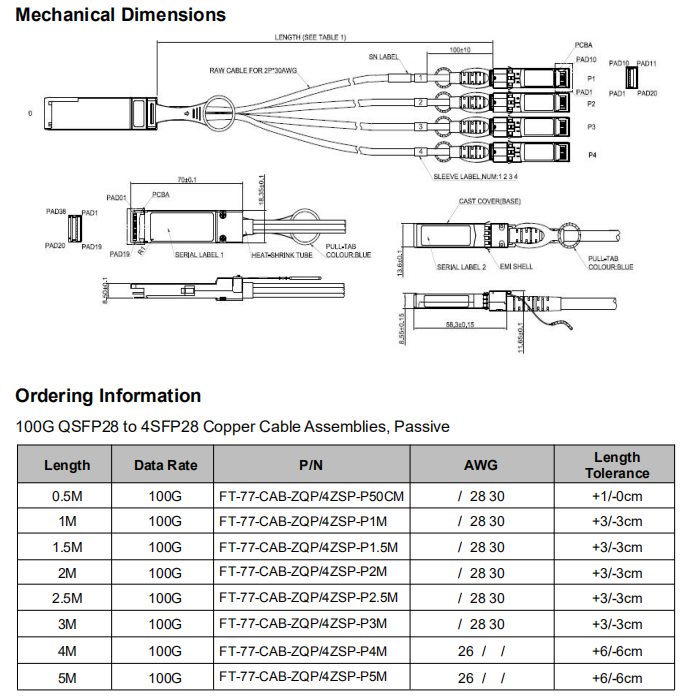

QSFP28 To 4SFP28 Passive Copper Cable Assembly
Description
Features
●100GbE to 4x25GbE data rate
●SFF-8402 SFP28 compliant
●SFF-8665 QSFP28 compliant
●Single 3.3V supply voltage
●Hot pluggable
●RoHS compliant
●SFF-8432 compliant
●IEEE P802.3bj compliant
Applications
●Low EMI radiation Switches, servers and router
●Data Center networks
●Storage area networks
●High performance computing
●Telecommunication and wireless infrastructure
●Medical diagnostics and networking
●Test and measurement equipment
Product Description
The F-tone Networks FT-77-CAB-ZQP/4ZSP-PxM passive copper cable is a high speed, cost-effective 100GbE to 4x25GbE Ethernet connectivity solution, designed for the growing need for higher bandwidth in data centers. The FT-77-CAB-ZQP/4ZSP-PxM cables are compliant with SFF- 8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each (Q)SFP port comprises an EEPROM providing product information which can be read by the host system.
F-tone Networks’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
