OTDR 檢測用光柵型反射器是基于光纖布拉格光柵技術，用于反射光線路終端側（OLT）的OTDR 檢測信號，而正常的無源光網絡系統（PON）中的工作波長則可以通過反射器。當測量系統向位于光路末端的光纖光柵線路終端發出一定波長范圍的信號光后，光柵型反射器將光柵特定波長（1644.5nm ~ 1655.5nm）反射回來，如檢測系統正常檢測到此信號，則證明此光纖鏈路正常。

產品應用

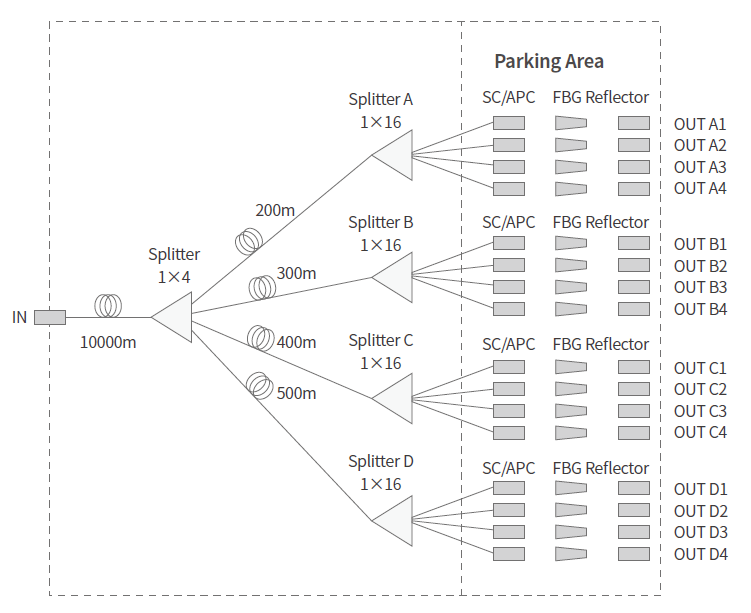

● 用于光檢測系統的光路監測和維護，可應用于FTTH，F(xiàn)TTB，F(xiàn)TTC
產品特點
● 反射波長和反射率控制精度高
● 通信波段低插損
● 可使用多種適配器結構，如：LC/APC、SC/APC
● 特定型號可雙向安裝
● 具有較高的可靠性和壽命
● 匹配GPON, EPON, GEPON, 10GEPON, NGPON

規格參數

*①FT-AE-REF-1650-XX-XX，其中，第一個XX是指光纖類型，第二個XX是指結構類型
*②插入損耗 IL（dB）= -10lg(輸出功率/輸入功率)(dB)
*③回波損耗 ORL（dB）= -10lg(反射功率/輸入功率)(dB)，測試回波損耗帶寬時1650nm光源從母頭注入

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
