MXC? Brand Connectors

US Conec has developed a versatile, cost effective, next generation connector family optimized for direct interface to equipment densely populated with mid-board mounted, multimode or singlemode optical modules. Supporting a varied selection of link designs, the newly released MXC? connector platform is optimized for expanded beam PRIZM? MT ferrules providing for a more robust and debris insensitive interface compared to existing solutions. The platform is also compatible with traditional physical contact MT ferrules making it ideal for a wide variety of equipment interface applications.

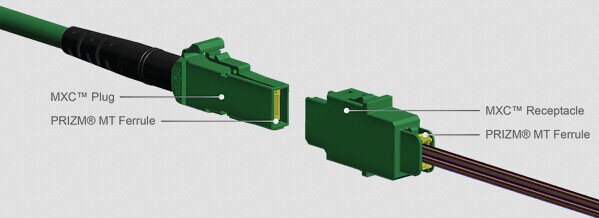

Compared to existing optical connector solutions, the unique plug and receptacle design provides increased density with fewer components, making it cost effective and ideal for new equipment card edge requirements driven by implementation of embedded, mid-board optics modules. PCB space consumption on the inside of the equipment is minimized by combining the traditional adapter and on-card plug into one simple, condensed, single piece housing.

Future variants of the platform support a wide variety of configurations including strain relief at the individual ferrule level or mass strain relief of multiple ferrules within a single cable unit. US Conec’s novel alignment design enables scaling to 8 or more ferrules in a single connector embodiment for front panel bulkhead or blind mating.

US Conec will continue its traditional business model with this new technology in that components will be sold and training will be provided to cable assembly manufacturers worldwide. A formal certification program is in place to ensure quality assemblies.

Samples of the single port version are readily available upon request.
