GYM31九十六芯光纜組件

1、型號
① 組件型號 J599MT/20KG4M24N-48DLC-2MIV5.5/3
型號說明：一端為J599MT/20KG4M24N插座，另一端為DLC雙工插頭，使用φ10九十六芯多模OM3鎧甲光纜，光纜總長5.5米，分支為φ2鎧甲光纜長度3米。
② 組件型號 CG-97-00-001
型號說明：一端為J599MT/20KG4M24N插座，另一端為DLC雙工插頭，使用φ10九十六芯多模OM3鎧甲光纜，光纜總長L(見表)米，分支為φ2鎧甲光纜長度L1(見表)米。
③ 組件型號 J599MT/26KG4M24N-J599MT/26KG4M24N-MIV30
型號說明：兩端為J599MT/26KG4M24N插頭，使用φ10九十六芯多模OM3鎧甲光纜，光纜總長30米。
2、產品功能
該光纜組件用于傳輸九十六路850nm、1300nm波長光信號。
3、光纜組件外形及尺寸

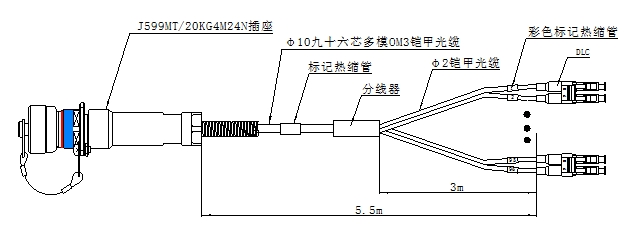

① J599MT/20KG4M24N-48DLC-2MIV5.5/3光纜組件外形圖

DLC插頭需要卡雙工卡扣，雙工卡扣標記（A、B）與熱縮管標記序號對應關系見表

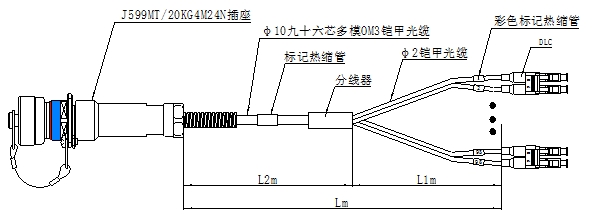

② CG-97-00-001光纜組件外形圖

DLC插頭需要卡雙工卡扣，雙工卡扣標記（A、B）與熱縮管標記序號對應關系見表；
L2長度為0.27m，L＝L1+L2

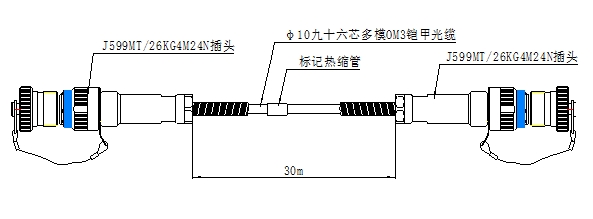

③ J599MT/26KG4M24N-J599MT/26KG4M24N-MIV30 光纜組件外形圖

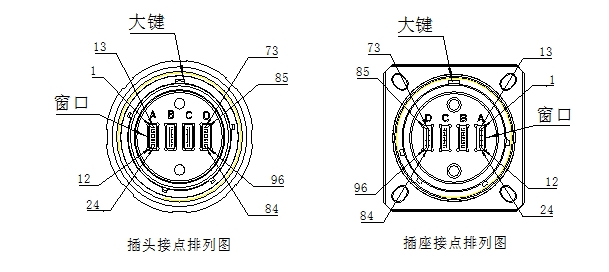

4、接點排列

5、光路對應關系
連接器兩端光路對應關系均為一一對應

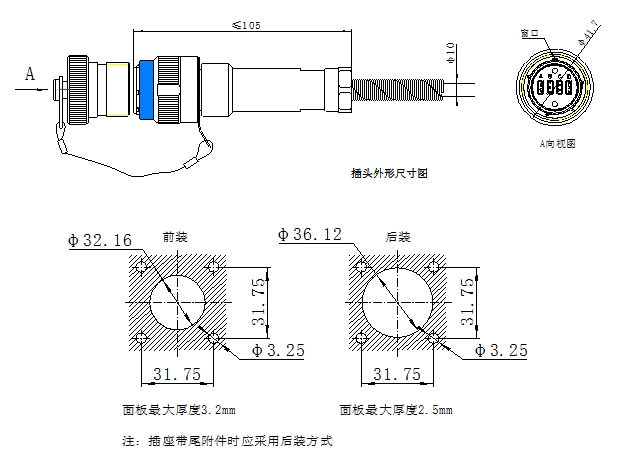

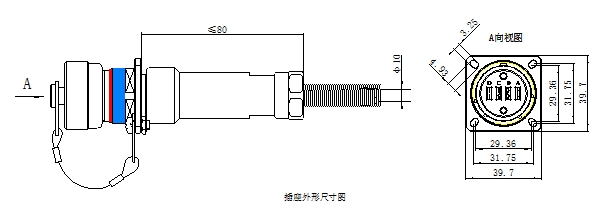

6、 插頭、插座外形尺寸及插座開孔尺寸

7、 產品性能

注：本產品有全國產化型號可選
