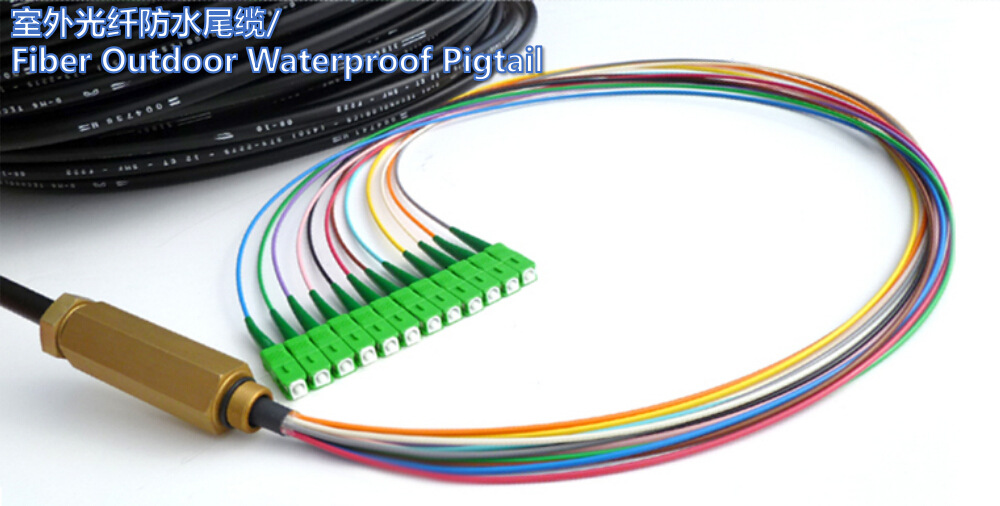

室外防水尾纜，是指用于連接室外防水光纜GYJTA和光纖耦合器的一個類似一半跳線的接頭，它包括一端跳線接頭和一段GYJTA室外防水光纜。

Waterproof pigtail, is assemblied by a waterproof GYJTA cable and one side connectors.

產品特性Feature：
室外防水尾纜主要用于野外光端機的接入，使用環境適應性強，一端帶有光連接器，配有耐用防水接頭。安裝方便，可靠，能抵御野外各種惡劣的環境壽命長，外套韌性好，抗拉，接地性能良好。
Waterproof fiber pigtail can be used in harsh environment. It is mainly used in outdoor connection of the optical
transmitter.It’s designed with a strengthened waterproof unit and armored outdoor PE jacketed cables. Installing
easily and reliable, strong tension, and excellent toughness .

應用環境Application:
光纖通信系統，電信網絡，有線電視網絡，局域網絡，廣域網，室外設備連接，惡劣環境中的安裝調試，FTTX……等。
Fiber telecommunication system. Telecommunication network, CATV,LANs,WANs,External equipment connecting,Installing and debugging at harsh environment.FTTX...etc .

產品分類Classification:

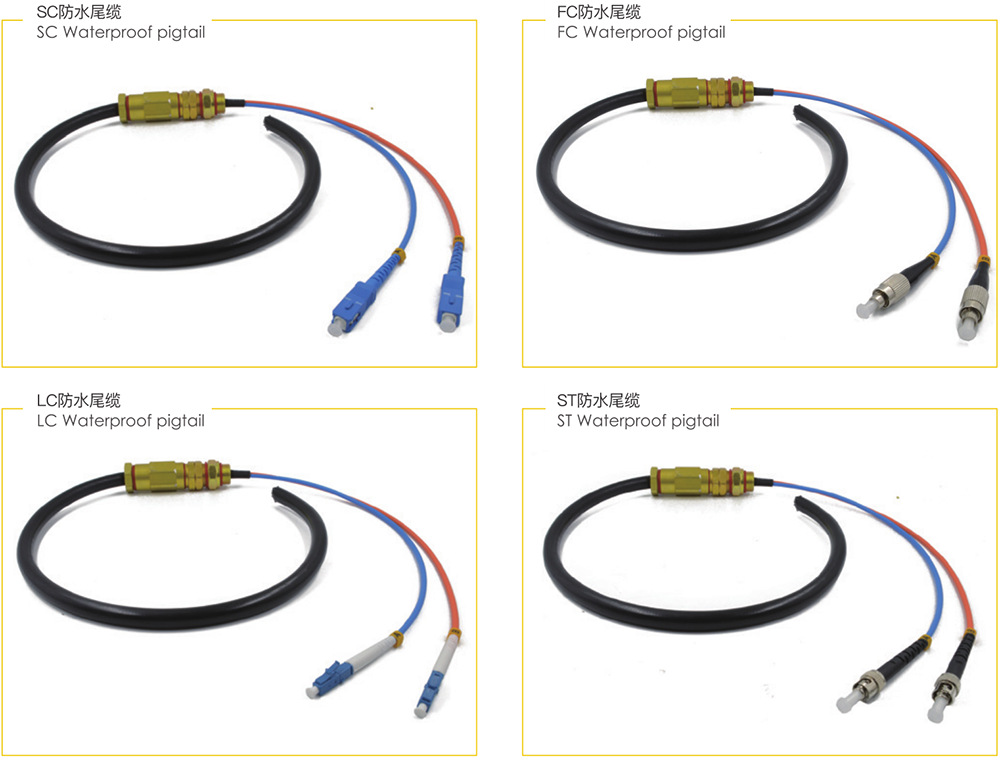

室外防水尾纜可按照連接器的型號分類，分為FC,SC,LC,ST……等
It’s classified by connectors, there are FC,SC,LC,ST...etc .按照光纖纖芯型號分類，可分為單模尾纖，千兆多模尾纖，萬兆多模尾纖。

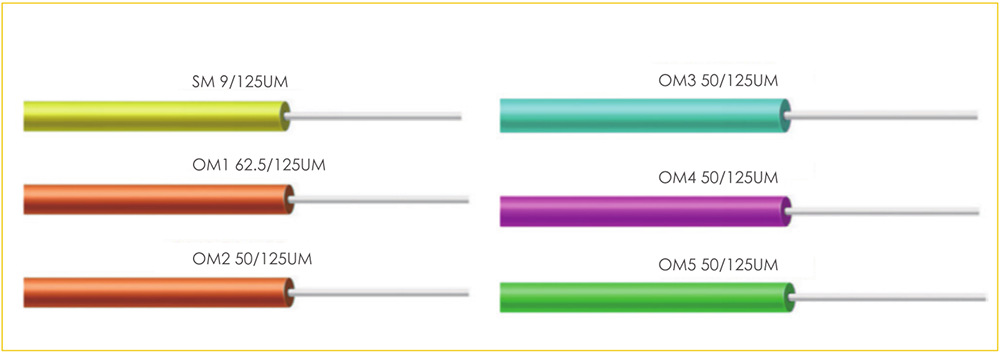

It’s classified by fiber model, there are SM,OM1,OM2,OM3,OM4.

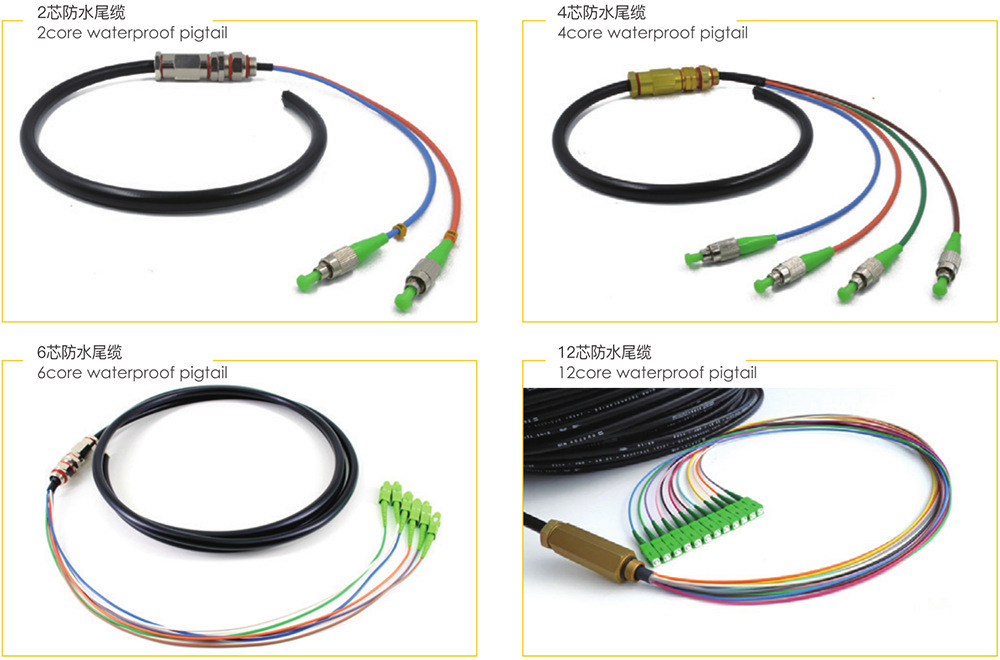

按照光纖纖芯芯數分類，可分為1.2.4.6.8.12芯防水尾纜。

It’s classified by cores number, there are 1,2,4,6,8,12..cores.

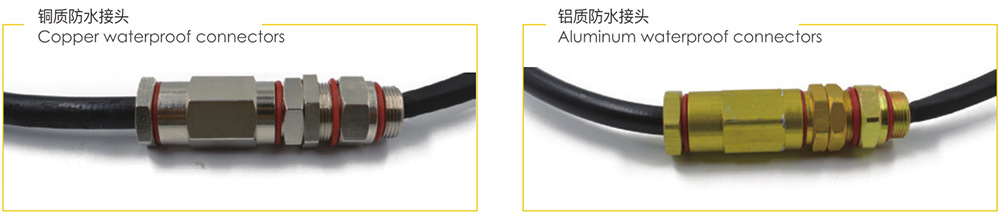

防水尾纜的防水接頭材質，分銅質防水接頭和鋁質防水接頭兩種。

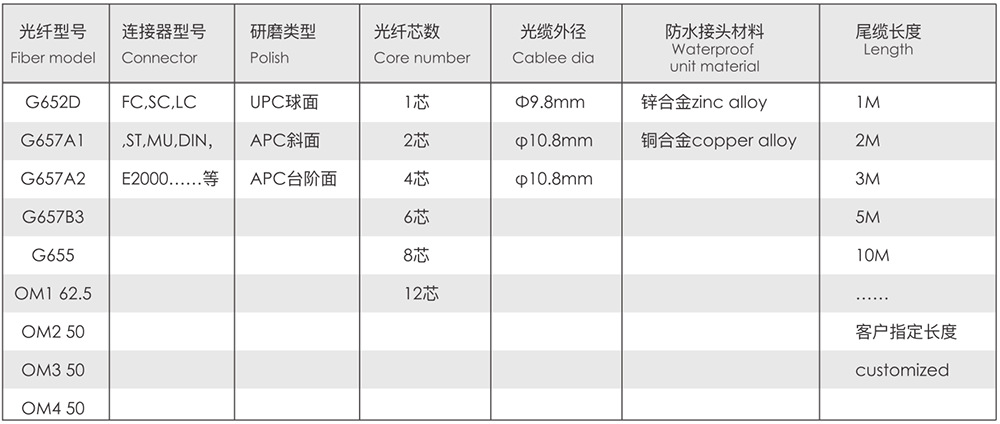

There are two types of waterproof connetor: Aluminum and Copper.技術參數Specifications

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
