DWDM SFP Optical Transceiver
Description
DWDM SFP Optical Transceiver
Description
F-tone DWDM SFP Transceiver exhibits excellent, wavelength stability, supporting operation at 100 GHz channel,cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and FiberChannel applications.
The transceiver consists the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. F-tone DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
Features
● Wavelength selectable to C-band and L-band ITU-T grid wavelengths
● Suitable for use in 100GHz channel spacing DWDM systems
● DWDM SFP MSA Compliant
● Up to 2. 667Gb/s data rate
● Cold Start up Wavelength Compliance
● Low Power Dissipation <1.3W Maximum
● Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current
● Extended link budget with APD receiver technology
● OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
● RoHS compliant and lead free
● Operating Case Temperature
Standard: -5 to 70°C
Extended: -20 to 70°C
Applications
● SFP Transceivers for DWDM SONET/ SDH
● Ethernet IEEE 802.3ae
● Fiber Channel

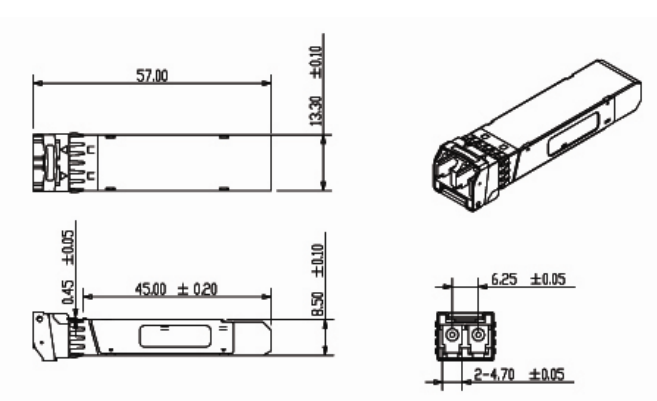

Mechanical Dimensions

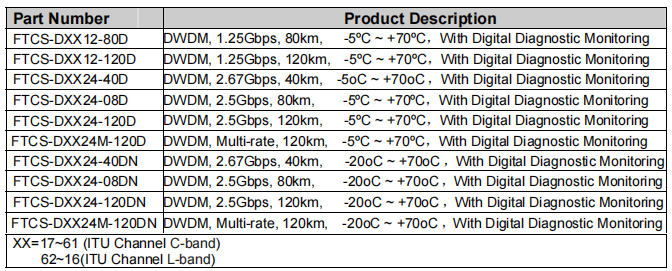

Part Number Ordering Information
注：本產品有全國產化型號可選
本產品為SFP DWDM系列光模塊，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
