40KM DWDM SFP+ 光模塊

Description
F-tone SFP+ER DWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features
● Compliant with SFF-8431,SFF-8432 and IEE802.3ae
● 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
● Suitable for use in 100GHz channel spacing DWDM systems
● Cooled EML transmitter and PIN receiver
● link length up to 40km
● Low Power Dissipation 1.5W Maximum
● Operating Case Temperature:
      Standard : 0 to +70°C
      Industrial : -40 to +85°C
● Single 3.3V power supply
● Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
● For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
● For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
● RoHS6 compliant and lead free

Applications
● 10GBASE-ER (with/without FEC)
● 10G Fiber Channel

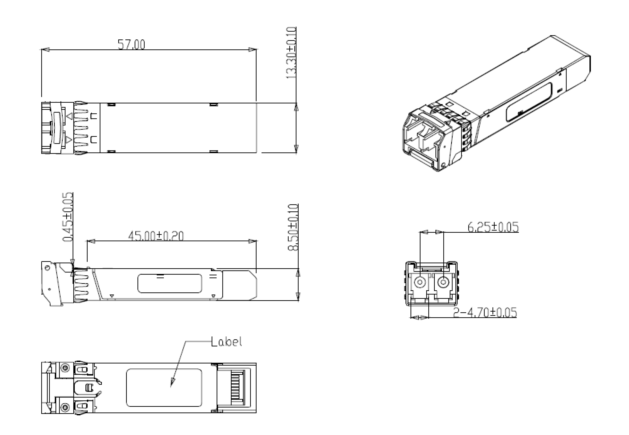

Mechanical Dimensions

Part Number Ordering Information
