400G QSFP-DD DR4 Optical Transceiver

Descriptions
FTQD-4H-DR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 500m. FTQD-4H-DR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes 1310nm each running at 106.25Gbps.They are compliant with the QSFP-DD MSA and 400GBASE-DR4 optical specifications.FTQD-4H-DR4 are compliant with RoHS.

Product Features
● Compliant with IEEE Std 802.3bs
● Compliant with QSFP-DD MSA
● Compliant with CMIS4.0 Management interface specifications
● MPO-12 receptacles
● 1310nm EML laser
● 8*26.5625GBd PAM4 electrical interface
● Transmission distance up to 500m SMF
● Single +3.3V power supply
● Commercial operating temperature:0℃ to +70℃
● RoHS Compliant

Applications
● 400G BASE-DR4 Ethernet
● Data Center

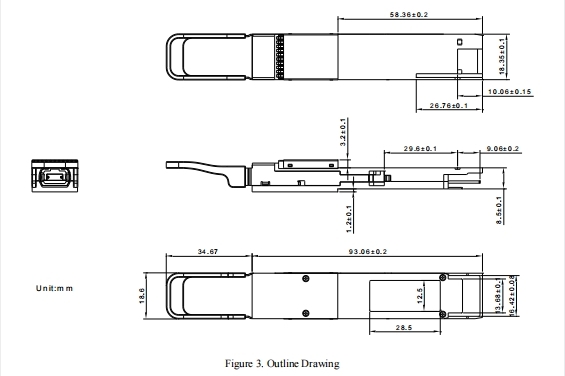

Mechanical Specifications

本產品為FT-XM系列，僅展示部分參數，如有需要，請聯系我們。
注：本產品有全國產化型號可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
