3Gbps SFP Video Dual Optical SM Receiver SDI

FEATURES
● Speed from 50 Mbps to 3 Gbps
● link length up to 10km
● SMPTE 292M/297M/259M Compatible
● Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
● Single 3.3 Volt DC supply
● Based on Industry Standard SFP
● Hot Pluggable
● LC connector
● Operating case temperature:
      FTCS-2R133G-10D : 0 ℃to 70℃
      FTCS-2R133G-10DI : -40 ℃to 85℃

APPLICATIONS
● High-density Video Routers

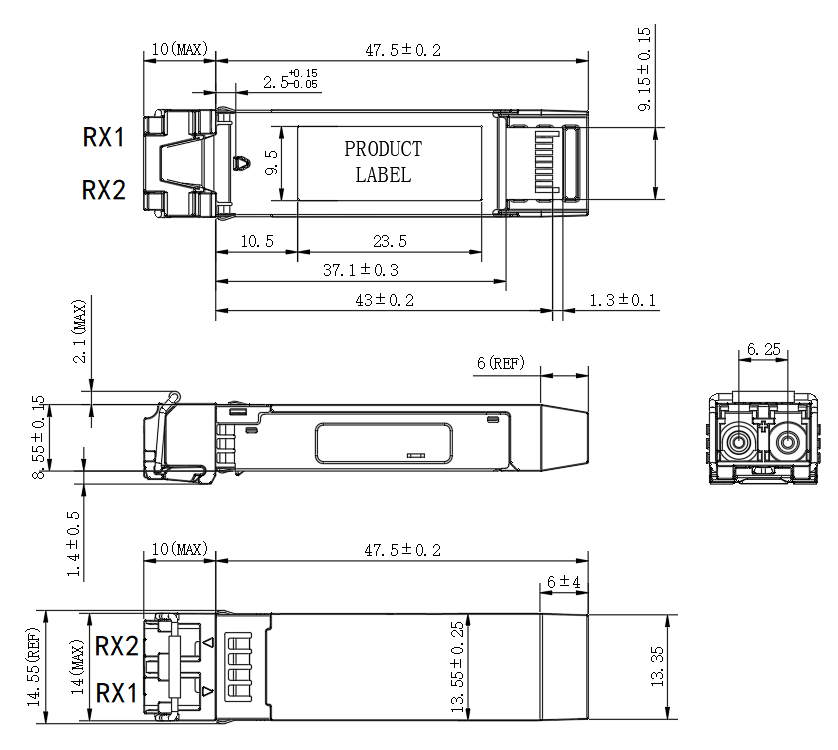

Mechanical Dimensions

NOTE: Unspecified tolerance: ± 0.25mm

Ordering Information

注：本產品有全國產化型號可選
本產品為Video SFP系列光模塊，僅展示部分參數，如有需要，請聯系我們。

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
