25G SFP28 20km Dual CWDM Transceivers With APD

DESCRIPTION
The Transceiver is intended for 20km reach service from 24.33Gb/s to 25.78Gb/s CWDM C35~C37 single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a C35~C37（DML)laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

PRODUCT FEATURES
● Operating data rate up to 25.78Gbps
● Up to 20km transmission distance
● High sensitivity APD photodiode and TIA
● Rate Adaptation
● LC duplex connector
● Hot pluggable 20pin connector
● Low power consumption：1.5W
● Single +3.3V±5% power supply
● Compliant with SFF-8472
● Fully RoHS Compliant
● Operating temperature range: 0°C to +70°C

Application
● 25G Ethernet
● CPRI Option 10
● Fibre Channel 32GFC

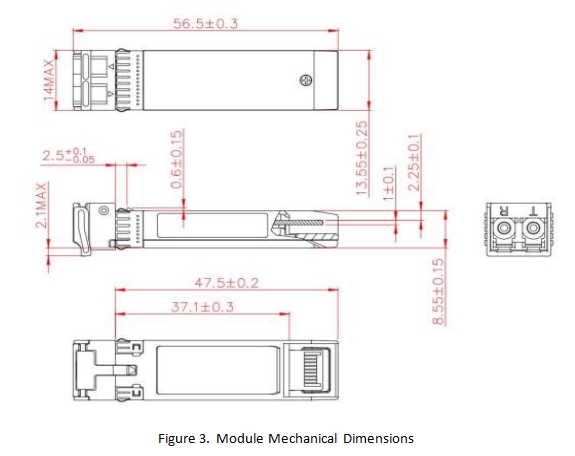

Mechanical Dimensions
Order Information

本產(chǎn)品為25G~400G高速光模塊系列，如有需要，請聯(lián)系我們。
注：本產(chǎn)品有全國產(chǎn)化型號可選
