1550nm 100/1000BASE SFP Transceiver With SGMII Interface

Product Description
The SGMII Series optical transceivers are high performance, cost effective modules. They offer the customer a range of design options, including optional DDMI, standard temperature ranges. They are designed to provide 125Mb/s and 1.25 GB/s optical link in Gigabit Ethernet switches. These transceivers are qualified in accordance with GR-468-CORE.

Features
● Operating data rate at 125Mbps or 1.25 Gbps
● Distance up to 550m~40km
● Single 3.3V Power supply and TTL Logic Interface
● Duplex LC Connector Interface
● Hot Pluggable
● Compliant with MSA SFP Specification SFF-8472
● Compliant with IEEE 802.3
● Operating Case Temperature：0 ~ +70deg C

Applications
● Gigabit Ethernet Switches and Routers
● Broadband aggregation and wireless Infrastructure
● Other Optical Link

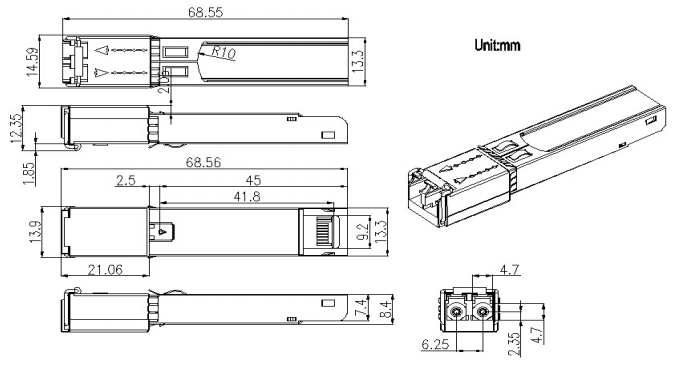

Mechanical Dimension

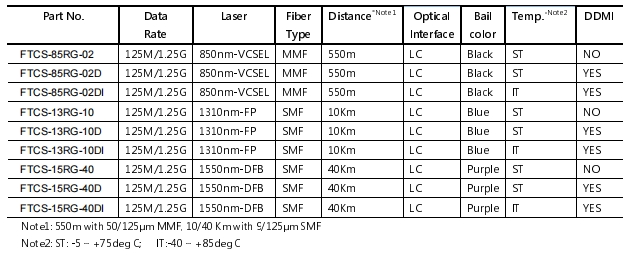

Ordering information

注：本產(chǎn)品有全國(guó)產(chǎn)化型號(hào)可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
