10Gb/s SFP+ BIDI 10km/20km Optical Transceiver Module

General Description
F-tone’FTCS-B131X-10Dxx/FTCS-B151X-10Dxx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-B131X-10Dxx/FTCS-B151X-10Dxx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features
● Up to 11.1Gb/s data rate
● 1310nm DFB laser and PIN receiver for FTCS-B131X-10Dxx
● 1550nm DFB laser and PIN receiver for FTCS-B151X-10Dxx
● 2-wire interface with integrated Digital Diagnostic monitoring
● Up to 10km transmission on SMF
● BIDI LC optical connector
● Single +3.3V power supply
● RoHS-6 compliant and lead-free
● Compliant with SFF+MSA and SFF-8472
● Maximum power consumption 1.5W
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Operating case temperature
       Commercial: 0 ~ +70℃
      Extended: -10 ~ +80℃
      Industrial: -40 ~ +85℃

Applications
● Back to Back
● 10GBASE-LR/LW
● 10G Ethernet

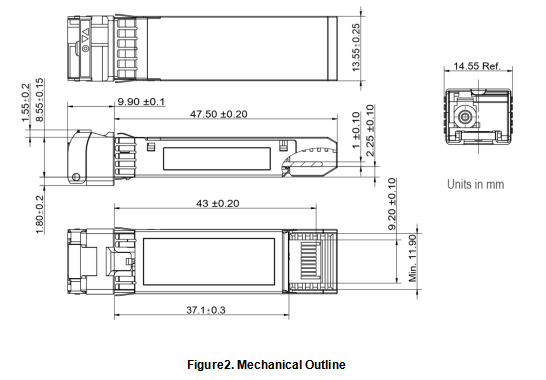

Mechanical Dimensions

Part Number Ordering Information

注：本產(chǎn)品有全國產(chǎn)化型號可選
本產(chǎn)品為BIDI SFP+系列光模塊，如有需要，請聯(lián)系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
