10Gb/s Copper SFP 光收發一體模塊

產品描述
FTCS-10G-Txx銅質小型可插拔（SFP）收發器基于SFP多源協議（MSA）。它們與IEEE STD 802.3an中規定的千兆以太網標準兼容。10GBASE-T物理層IC（PHY）可以通過I2C訪問，允許訪問所有PHY設置和功能。
FTCS-10G-Txx符合IEEE STD 802.3an、802.3ab和802.3au中規定的10G BASE-T/1000Base-T/1000Base-T標準。

產品特征
● 支持主機系統中的10GBASE-T操作
● 熱插拔SFP封裝
● 使用Cat 6a/7電纜最多30米
● 不支持TX_禁用和帶鏈接功能
● 符合SFF-8431和SFF-8432 MSA
● 低功耗（典型值為1.2W）
● I2C雙線接口DDM
● 全金屬外殼，實現低EMI
● 符合IEEE 802.3az標準
● 單個+3.3V電源
● 緊湊型RJ-45連接器組件
● 符合RoHS-10標準且無鉛
● 運行工況溫度：
          商業級：0~+70℃

產品應用
● 10G BASE-T IEEE 802.3an
● 5G MGBASE-T
● 2.5克毫克/噸
● 1000BASE-T IEEE802.3ab
● 100BASE-T IEEE802.3au

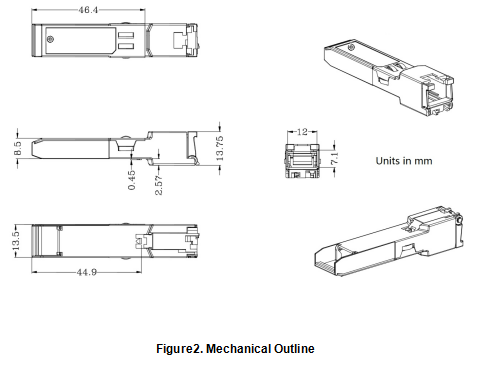

外形規格

Ordering Information

注：本產品有全國產化型號可選

本產品為SFP COPPER系列光模塊，僅展示部分參數，如有需要，請您聯系我們:+86-028-85255257。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
