10G-BASE-T Copper SFP+ Transceiver

Features
● Supports Links up to 30m using Cat 6A Cable
● SFF-8431 and SFF-8432 MSA Compliant
● IEEE 802.3az and 802.3an Compliant
● IEEE 802.3bz for 5G&2.5G BASE-T
● Hot-pluggable SFP+ footprint
● TX Disable and RX Los function
● Fully metallic enclosure for Low EMI Emissions
● +3.3V single power supply
● Low Power Consumption (2.5W MAX @ 30m)
● Compact RJ-45 connector assembly
● Access to physical layer IC via 2-wire serial bus
● XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
● Auto-negotiates with other 10GBase-T PHYs
● Supports 100/1000Base-T using Cat 5e cable or better
● MDI/MDIX Crossover
● Multiple Loopback Modes for Testing and Troubleshooting
● Built-in Cable Monitoring and Link Diagnostic
● Unshielded and Shielded cable support
● Case operating temperature:
      Commercial: 0 ~ +70℃
      Industrial: -40 ~ +85℃

Applications
● 10 Gigabit Ethernet over Cat 6A/7 cable
● 5 Gigabit Ethernet over Cat 6A/7 cable
● 2.5 Gigabit Ethernet over Cat 6A/7 cable
● 1.25 Gigabit Ethernet over Cat 5e cable

Description
F-tone Networks’s FTCS-10G-Txx-M Copper Small Form Pluggable Plus (SFP+) transceivers is high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twisted-pair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.

Mechanical Specifications

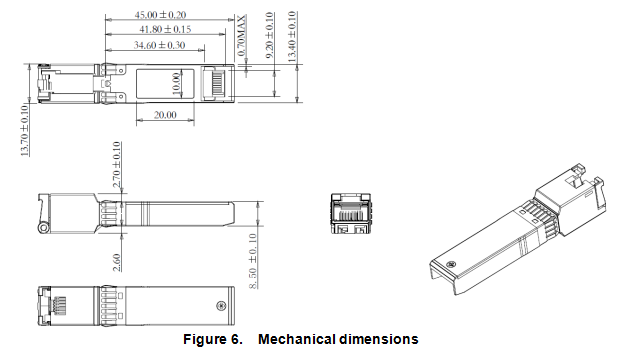

The host-side of the FTCS-10G-Txx-M conforms to the mechanical specifications outlined in the SFP MSA1. The front portion of the SFP (part extending beyond the face plate of the host) is larger to accommodate the RJ-45 connector

Ordering Information

注：本產品有全國產化型號可選

本產品為Copper SFP+系列光模塊，僅展示部分參數，如有需要，請聯系我們。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
