1064nm PM Isolator(Dual stage)
Description
PM Isolator, 1064nm, Dual stage, fast axis blocked, FC/APC
Description
The 1064nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation,high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instruments application.
Specifications
|
Parameters |
Unit |
Dual Stage |
|
Grade P |
||
|
Center Wavelength (λc) |
nm |
1064 |
|
Min. Extinction Ratio |
dB |
20 |
|
Typ. Peak Isolation |
dB |
55 |
|
Min. Isolation at 23℃;λc,all polarization states |
dB |
45 |
|
Typ. Insertion Loss at23℃;λc,all polarization states |
dB |
2.4 |
|
Max. Insertion Loss at-5℃-50℃;λc,all polarization states |
dB |
3.4 |
|
Min. Return Loss (input/output) |
dB |
55/50 |
|
Max. Optical Power (Continuous Wave) |
mW |
300 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
PM 980 Panda Fiber |
|
|
Operating Temperature |
℃ |
-5 to +50 |
|
Storage Temperature |
℃ |
-40 to +85 |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

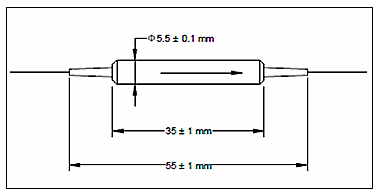

Package Dimensions
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
