Description
產品簡介
|
FT-COSC-PLS-1064-HS-MB系列1064nm脈沖光源模塊設計用于激光頻率轉換、MOPA結構光纖激光器、光譜分析、光纖傳感。模塊自帶脈沖信號發生器與阻抗匹配驅動單元,通過直接調制半導體激光器使其工作在極窄的脈沖寬度(最小值10ns),且可根據客戶要求調節脈沖寬度與脈沖重復頻率。本系列產品可與COSC脈沖光纖放大器系列產品配合使用,可大幅度提高脈沖峰值功率達KW級,特別適合于激發光纖內部的非線性效應。內置脈沖同步電路,在給出光脈沖信號時,同步電信號通過SMA接口輸出,便于用戶將模塊植入系統。FT-COSC-PLS-1064-HS-MB系列模塊內置驅動電路與邏輯控制電路,對激光器溫度、模塊溫度等關鍵信息實時監測。模塊可通過上位機配置工作參數。模塊出廠預設狀態參數依據具體訂貨型號或客戶要求提供默認配置。
|
產品特點
|
|
窄脈沖寬度 (Min. 10ns)
高峰值脈沖光功率 (Max. 300mW)
高消光比 (Typ. 20dB)
脈沖寬度可調
脈沖重復頻率可調
內置電同步電信號接口
內置光監控信號接口
支持外調制模式
溫度波長鎖定控制
提供訂制設計與加工
|
應用領域
|
|
|

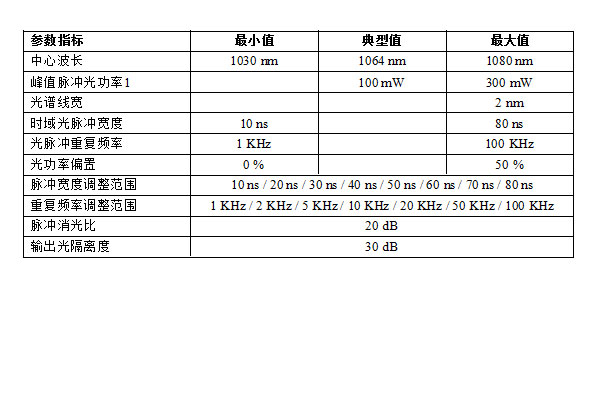

技術指標

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
