100G QSFP28 2X50G PAM4 DWDM CS Connector
Description
100G QSFP28 2X50G PAM4 DWDM CS Connector
Product Features
● Hot pluggable QSFP28 MSA form factor
● Up to 80km reach for G.652 SMF with transport white box
● Single +3.3V power supply
● Temperature Range 0 to 70°C
● Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
● Receiver: 2*27.5Gbaud/s Pin-PD ROSA
● 4*25G CAUI4 electrical interface
● Integrated SFEC with high coding gain
● PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
● Dual CS adaptor
● Compatible with RoHS6
Applications
● 100G Ethernet Metro-Access over DWDM
● P to P Access Network

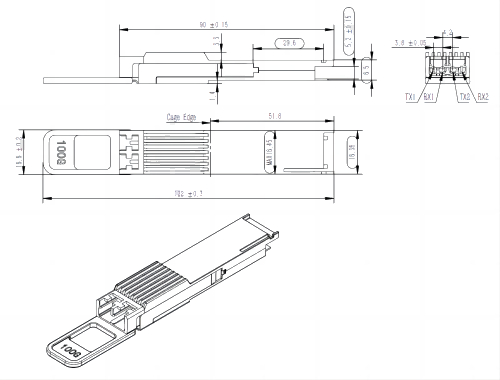

Mechanical Dimensions
Ordering Information
|
Part No |
Specifications |
||||||
|
Package |
Data rate |
Tx |
Pout |
Rx Sen. |
Top |
Others |
|
|
FTQ2-DxxHG-PAM4-80 |
QSFP28 |
103.125 Gbps |
Cooled EAM DFB-LD |
-1 ~ +4 dBm |
-12.5 dBm @BER 4E-3 |
0~70oC |
DDM |
北億纖通 | F-tone Networks
企業郵箱：sales@f-tone.com
企業網站：www.f-tone.com
企業網站：mpgyk.cn
企業電話：028-85255257
企業傳真：028-85977702
本產品為25G~400G高速光模塊系列，如有需要，請聯系我們。
注：本產品有全國產化型號可選
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
