1×9 BIDI DC-2Mbps 1310nm 20km 光模塊
Description
1×9 BIDI DC-2Mbps 1310nm 20km 光模塊
Product Description
F-tone Networks’s FTTR-BxxL1-xx BIDI series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 2Mbps.The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.
Product Features
● FP Laser Diode Transmitter
● Up to 40 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)TTL Input/ Output and LVTTL signal detect Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard ：0 to+70℃) or (Industrial： -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

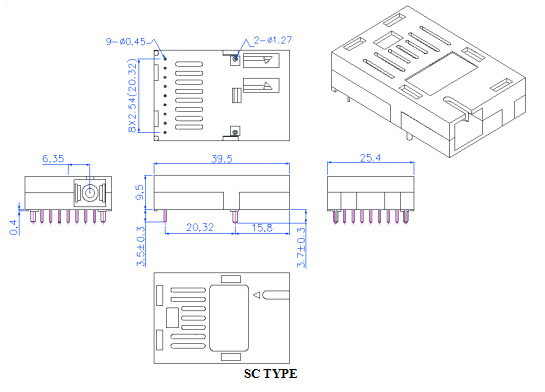

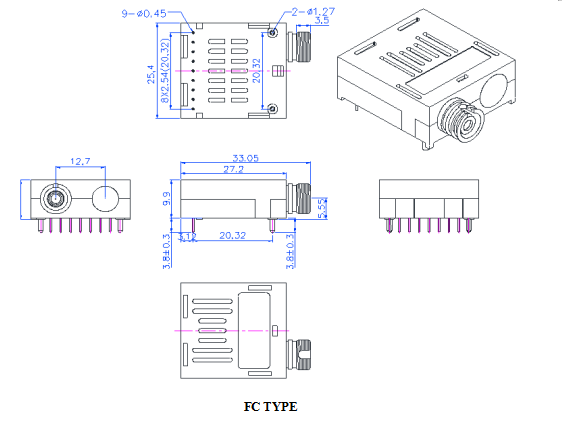

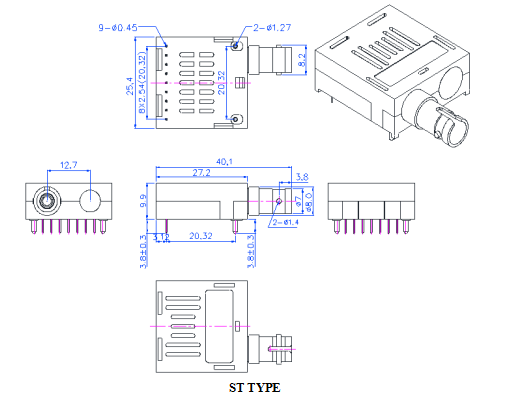

Module Outline Drawing (Units in mm)
Ordering information
|
產品型號 |
基本參數 |
|
FTTR-B13L1-20 |
1x9光模塊-T1310/R1550-2M-20KM |
|
FTTR-B15L1-20 |
1x9光模塊-T1550/R1310-2M-20KM |
|
FTTR-B13L1-40 |
1x9光模塊-T1310/R1550-2M-40KM |
|
FTTR-B15L1-40 |
1x9光模塊-T1550/R1310-2M-40KM |
注：本產品有全國產化型號可選，僅展示部分參數，如有需要，請您聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
