1.5GHz Pluggable XFP-RF Optical Transmitter

Features
● Low power consumption
● XFP form factor
● DOCSIS3.1 compatible
● SCTE 195 2013 compatible
● Double Optical Isolator
● LC/APC optical connection
● Fiber link up to 60km
● Excellent EMI/EMC design
● Automatic optical power control
● Operating frequency from 50MHz to 1.5GHz

Applications
● Antenna remoting
● Wireless signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

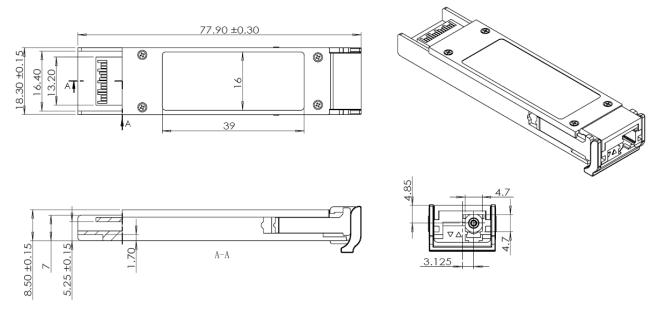

Mechanical (unit: mm)

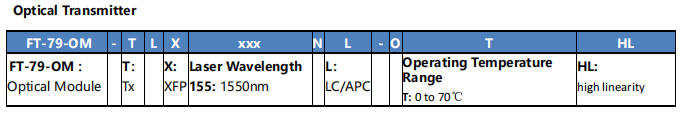

Ordering Information

注：本產品有全國產化型號可選

本產品為FT-79系列，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
