0~50Mbps TTL SFP Transceiver Module

Product Description
F-tone Networks’s FTCS-13LB-20I series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 50Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).
These transceiver modules provides the system designer with The transceiver module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission and Other multimode fiber networks.

Product Features
● 1310FP Laser Diode Transmitter
● Up to 20 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● LVTTL Inputs/ Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Extended： -40°C to +85°C)

Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

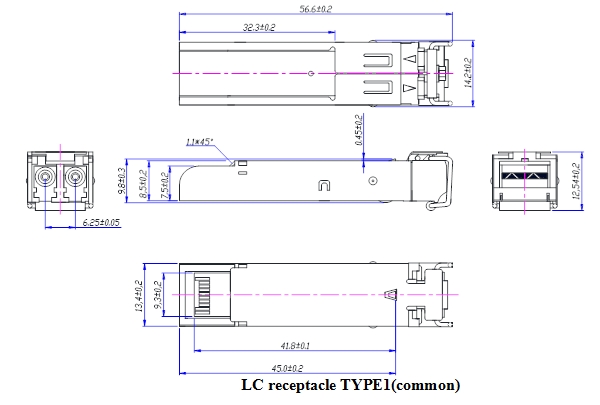

Module Outline Drawing（Units in mm)
Order Information

注：本產品有全國產化型號可選
本產品為SFP系列光模塊，僅展示部分參數，如有需要，請聯系我們。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
