0~2Mbps 1X9 LVTTL 1550nm SM Transceiver (100Km)
Description
0~2Mbps 1X9 LVTTL 1550nm SM Transceiver (100Km)
FEATURES
● Single +3.3V Power Supply
● Duplex SC/FC/ST Connector
● 1550nm DFB Transmitter
● DC~2M Data Rate
● LVTTL Input & Output
● Industry Standard 1×9 Package
● Operating case temperature:
FTTR-15L1-H0 ： 0 ℃to 70℃
FTTR-15L1-H0I ： -40 ℃to 85℃
APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

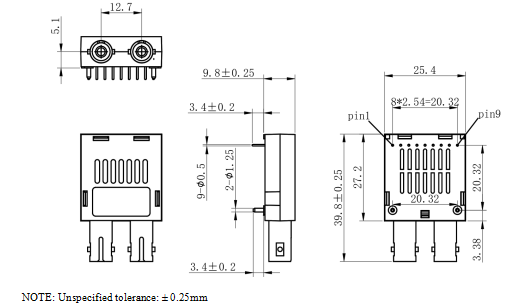

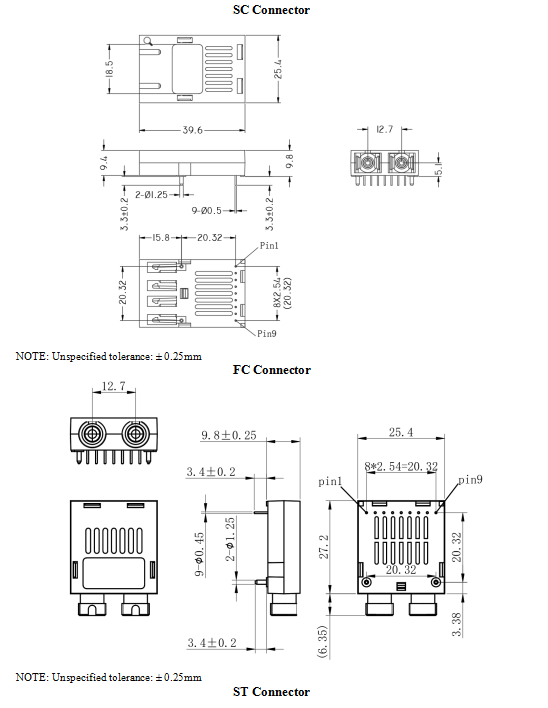

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power (dBm) |
RX Sens(dBm) |
Temp.(℃) |
|
FTTR-15L1-H0 |
SC/FC/ST |
0~2 |
100 |
1550 |
3.3 |
-3 to +2 |
-30 |
0 ~70 |
|
FTTR-15L1-H0I |
SC/FC/ST |
0~2 |
100 |
1550 |
3.3 |
-3 to +2 |
-30 |
-40 ~85 |
NOTE: Interface options:SC/FC/ST.
注：本產品有全國產化型號可選
本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
