0～2Mb/s TTL 電平光雙收一體模塊
Description
0～2Mb/s TTL 電平光雙收一體模塊
特點： Features
● SC/FC 插拔式或 FC 尾纖型光接口，單?；蚨嗄９怆p收一體模塊
● 單+3.3V /+5V 供電
● 接口電平兼容標準 TTL 電平和 CMOS 電平
● 標準 1×9 管腳封裝
● 接收器件的響應波長為 1100nm—1600nm 或 850nm
● 極低功耗設計，滿足特殊要求
● 傳輸速率低至直流，上限速率可選，最高可達 10Mb/s
● SC/FC receptacle or FC pigtail single mode or multi mode duplex receiver optical interface
● Single +3.3V /+5V Power Supply
● Standard TTL data output with signal detect indication, compatible with CMOS level
● 1×9 package
● High quality 850nm MQW-FP LD
● super low power consumption design, applied to some special require
● Optional transmission bit rate with down to 0bps and up to 10Mbps
應用：適用于 10Mb/s 以下的電力控制和工業控制的 RS232、RS485 等光電轉換設備。
Applications, Applied to RS232、RS485 optical-electrical converter for electric power control and industrial control with
bit rate up to 10Mbps

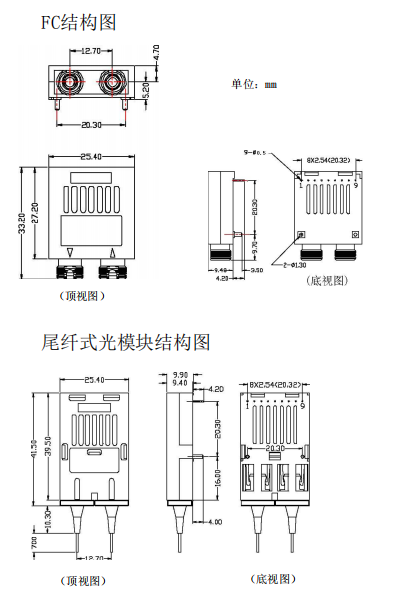

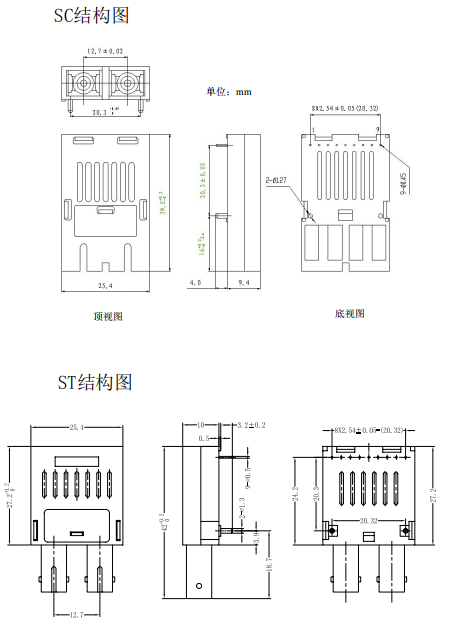

結構圖

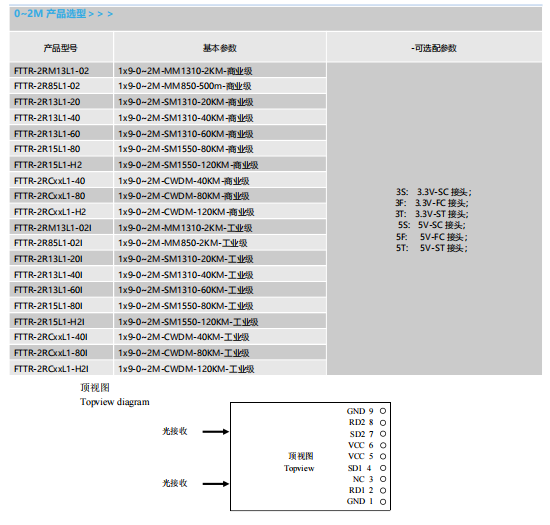

訂購信息
注：本產品有全國產化型號可選
本產品為光模塊1x9系列，僅展示部分參數，如有需要，請聯系我們。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
