0.01~24GHz模擬光收模塊

Features
● Small size：22mm*17mm*8.9mm
● High responsivity: typical 0.8 mA/mW @ 1310nm
● Operating frequency up to 24GHz
● Wide wavelength range from 800nm to 1650nm
● DC-block and matched to 50 Ohm

Applications
● 5G/4G/3G Mobile Communication
● Antenna remoting
● Satellite communications
● GPS signal transport
● Pulse signal transport
● Distributed antenna system
● High speed test and measurement
● Video signal distribution in HFC and FTTx Nodes

Absolute Maximum RatingsNote：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device warranty

Electrical and Optical CharacteristicsNote：（1）The lower start frequency such as DC or 9kHz is available upon request.（2）The ripple of passband has deducted the ripple of optical Tx.

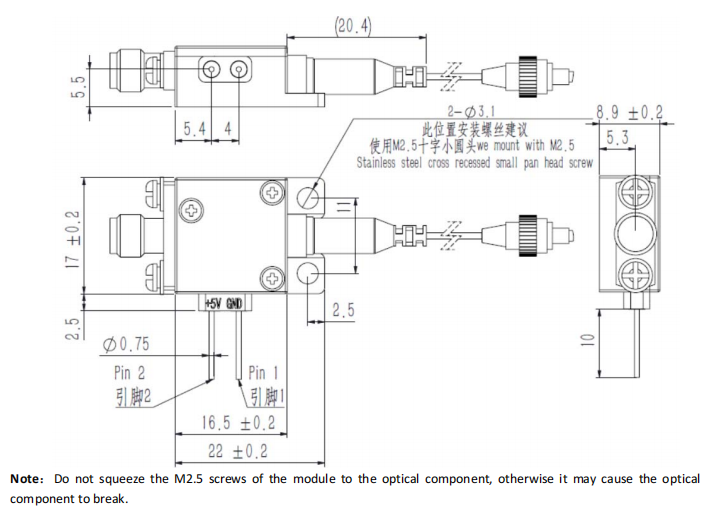

Mechanical (unit: mm)

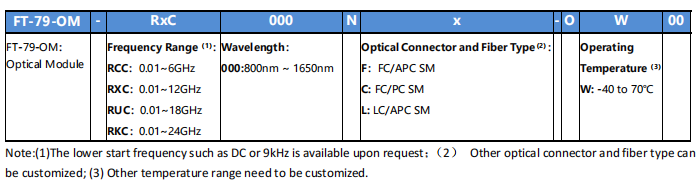

Ordering Information

北億纖通 | F-tone Networks
企業郵箱：sales@f-tone.com
企業網站：www.f-tone.com
企業網站：mpgyk.cn
企業電話：028-85255257
企業傳真：028-85977702

注：本產品有全國產化型號可選

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
